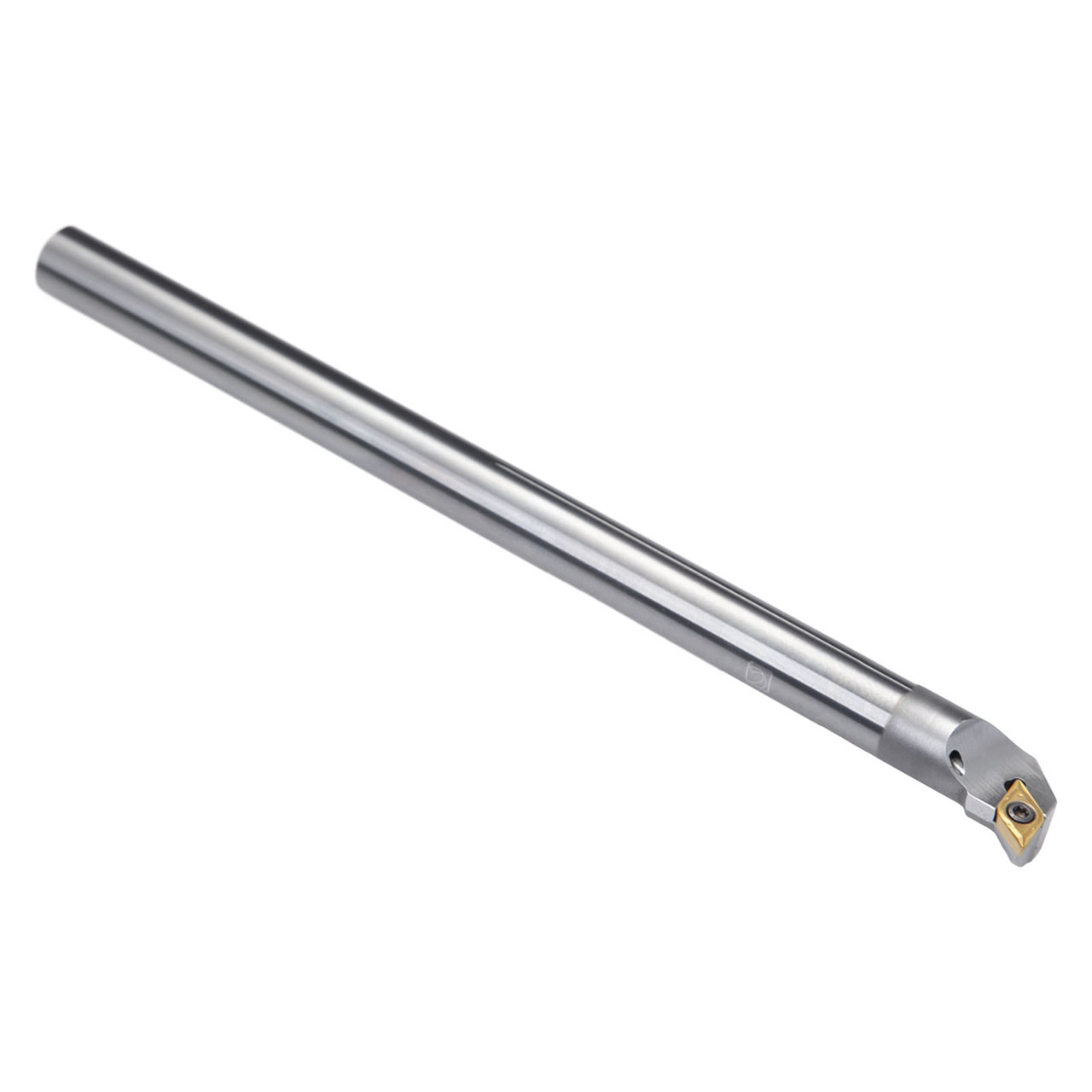

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 1/4'', 3/32'' thick (ANSI designation DC.. 21.5. ), left hand 93° end cutting with off-set shank, carbide with coolant hole, 1/2'' diameter x 8'' long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6788516 |
| Functional Width (Inch) | 0.438" |
| Inclination Angle | -5 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 12.7 mm |
| Connection Diameter (Inch) | 0.5" |
| Shank Height (Inch) | 0.46" |
| Minimum Bore Diameter (Inch) | 0.716" |
| Functional Length (Inch) | 8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Height (Inch):
29/64"
Shank Height (Decimal Inch):
0.4600"
Shank Height (mm):
11.68mm
