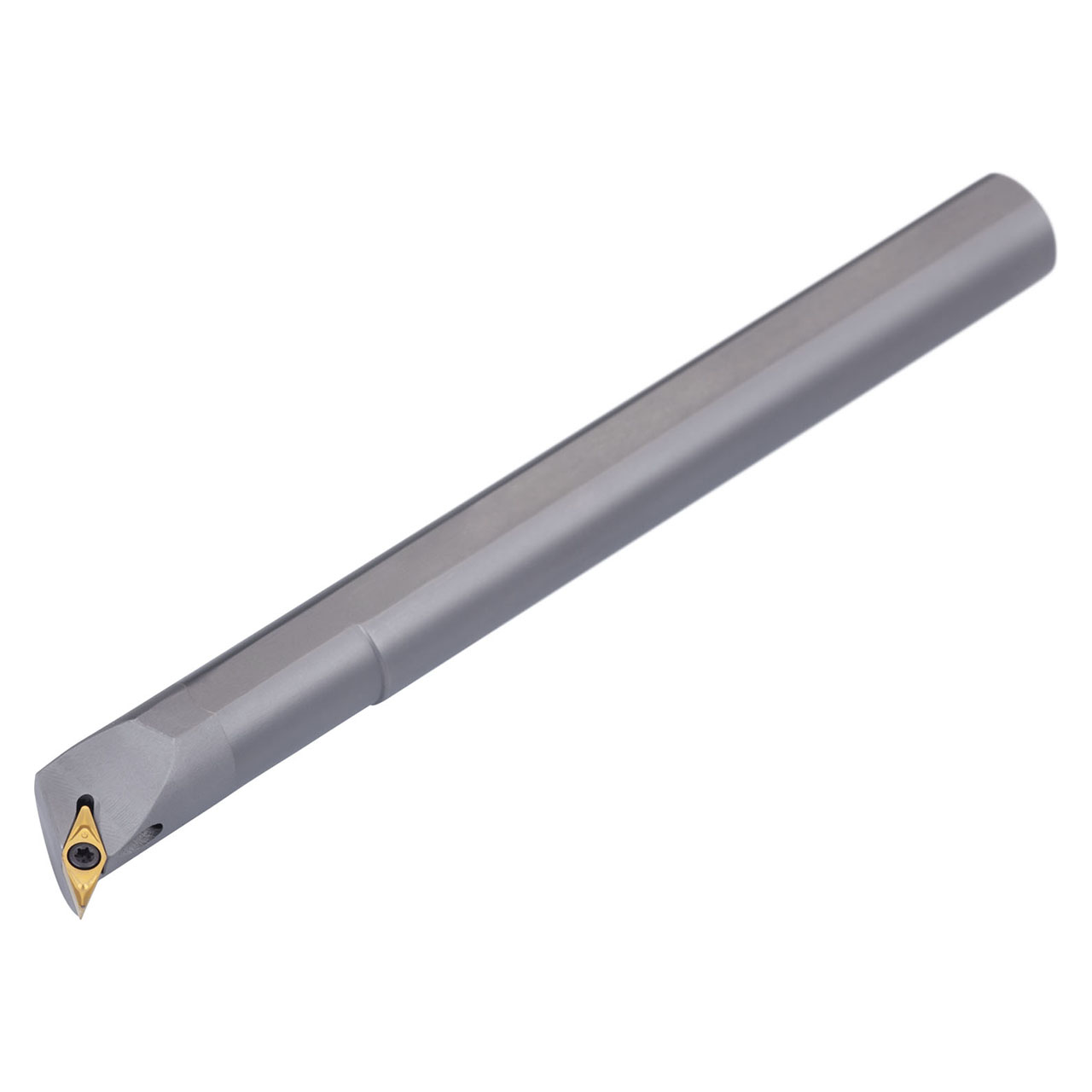

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 3.97 mm, 2.38 mm thick (ISO designation VC.. 0702.. ), right hand special tool style, carbide with coolant hole, 16 mm diameter x 150 mm long for single and multi-directional copy boring.
Product Specifications
| EDP Number | 6760759 |
| Functional Height (mm) | 7.5 mm |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Shank Height (mm) | 15 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 150 mm |
| Head Length (mm) | 36 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Height (Inch):
19/32"
Shank Height (Decimal Inch):
0.5900"
Shank Height (mm):
15mm
interval quantity:
1
