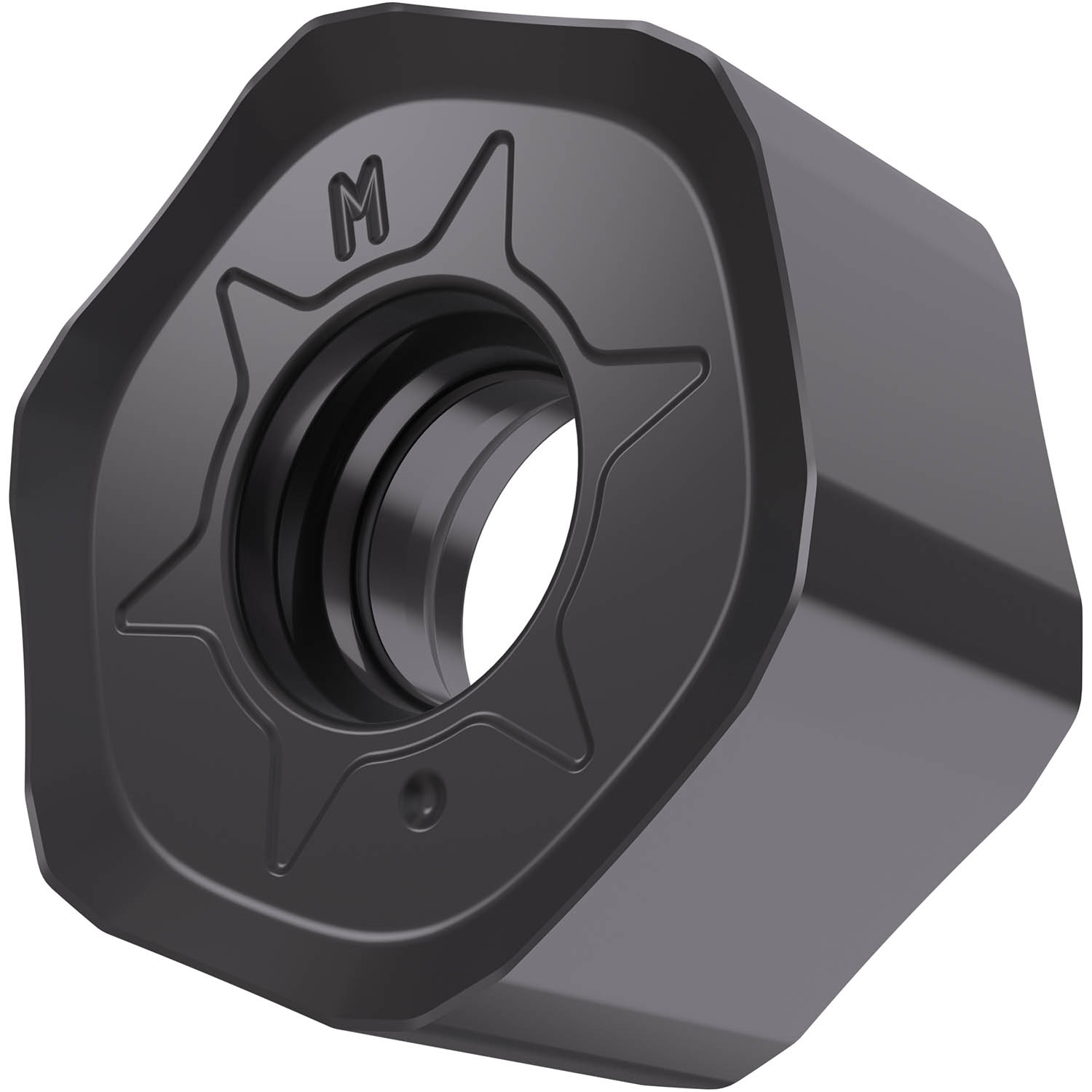

Double-sided milling insert HNGX 0604, hectagonal for a maximum depth of cut of 3.0 mm, with an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10 and K01-K10 for machining of steel and cast-iron with face mills SHN06C.
Product Specifications
| EDP Number | 6922526 |
| Maximum Depth of Cut (mm) | 3 mm |
| Max Depth of Cut (Inch) | 0.118" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.7 mm |
| Fixing Hole Diameter (Inch) | 0.146" |
| Inscribed Circle Diameter (mm) | 10.5 mm |
| Inscribed Circle Diameter (Inch) | 0.413" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | PVD |
| Coating | M8310 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.6 mm |
| Min Depth of Cut (Inch) | 0.024" |
