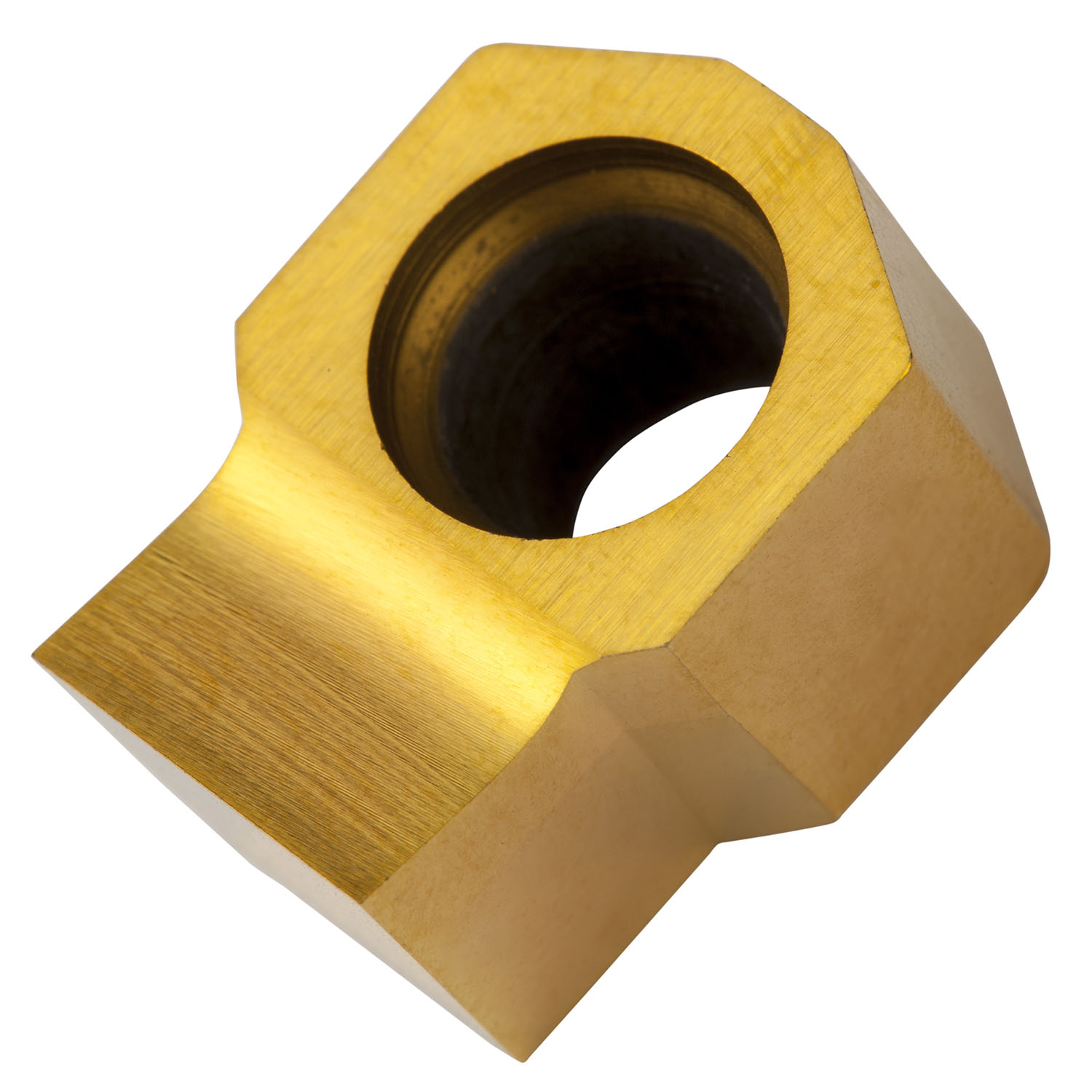

Single ended keyway and slotting insert for broaching a width of 10 mm within tolerance class H7, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZÂ…-13 size broach.
Product Specifications
| EDP Number | 6755407 |
| Cutting Width (Inch) | 0.394" |
| Cutting Width (mm) | 10 mm |
| Cutting Width Upper Tolerance (mm) | 0.015 mm |
| Max Depth of Cut (mm) | 6.2 mm |
| Max Depth of cut (Inch) | 0.244" |
| Coating Property | 1 |
| Inscribed Circle Diameter (mm) | 13 mm |
| Inscribed Circle Diameter (Inch) | 0.512" |
| Insert Length (mm) | 18.5 mm |
| Insert Length (Inch) | 0.728" |
| Insert Thickness (mm) | 9.4 mm |
| Insert Thickness (Inch) | 0.37" |
| Insert Thickness Total (mm) | 9.53 mm |
| Insert Thickness Total (Inch) | 0.375" |
| Coating Process | PVD |
| Coating | 333TN |
| Surface Color | Gold |
| Cutting Width Upper Tolerance (Inch) | 0.001" |
| Chipbreaker Manufacturer's Designation | No chipbreaker |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Cutting Width (Inch):
25/64"
Cutting Width (Decimal Inch):
0.3940"
Cutting Width (mm):
10mm
Maximum Depth of Cut (Inch):
1/4"
Maximum Depth of Cut (Decimal Inch):
0.2440"
Maximum Depth of Cut (mm):
6.2mm
Finish/Coating:
333TN
interval quantity:
2
