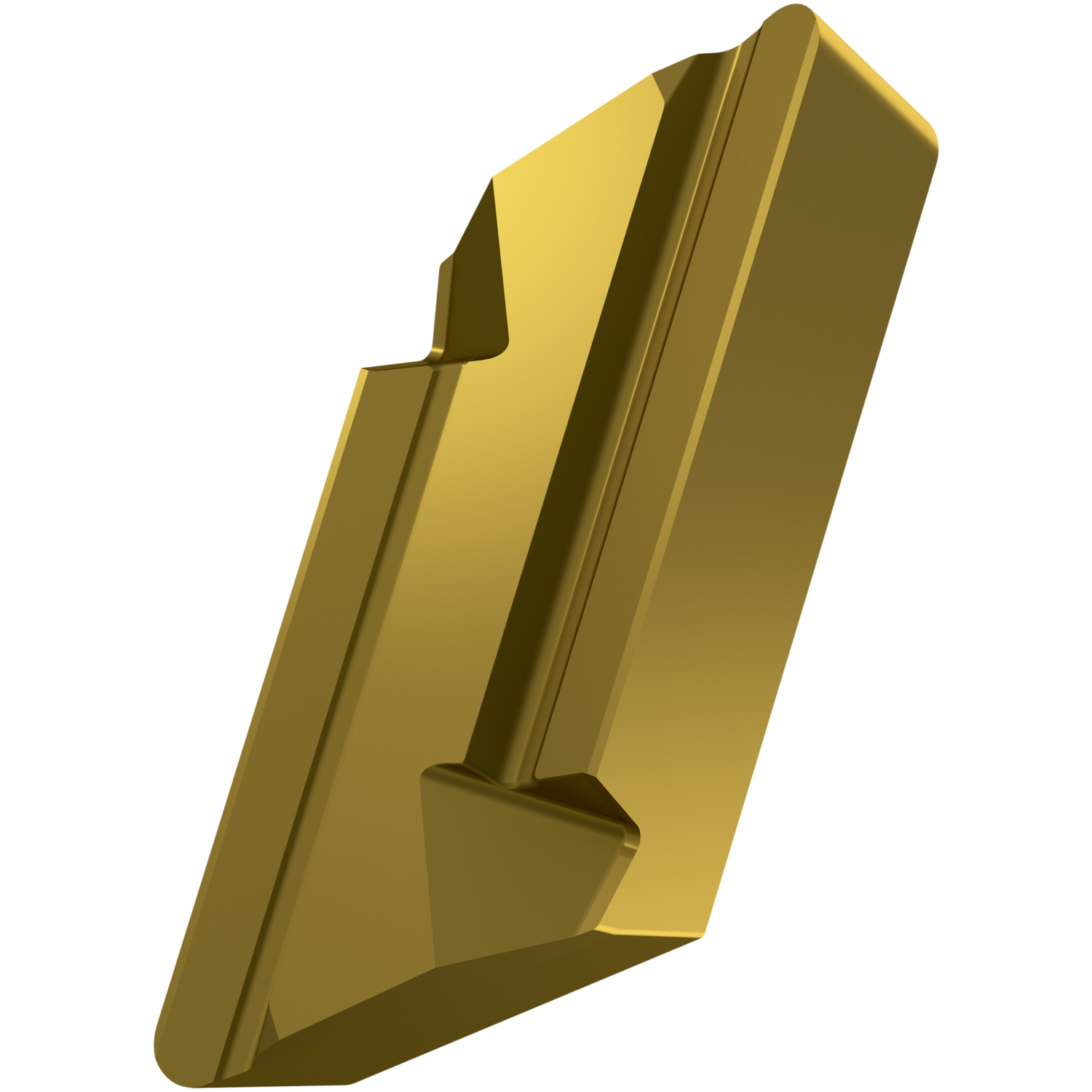

Special design negative turning insert, 55 Degree parallelogram with a main edge length of 16 mm, 4.76 mm thick, 0.5 mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 73 with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide within ISO ranges P20-P40 and M20-M35, for medium to heavy machining of steels and stainless-steels with a left handed turning tool.
Product Specifications
| EDP Number | 6751685 |
| Max Depth of Cut (mm) | 4.8 mm |
| Max Depth of cut (Inch) | 0.189" |
| Coating Property | 1 |
| Body Diameter (Inch) | |
| Cutting Edge Length (mm) | 19.5 mm |
| Cutting Edge Length (Inch) | 0.768" |
| Insert Width (mm) | 9.525 mm |
| Insert Width (Inch) | 0.375" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Corner Radius (mm) | 0.5 mm |
| Corner Radius (Inch) | 0.02" |
| Coating Process | MT-CVD |
| Coating | 6640 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
| Chipbreaker Manufacturer's Designation | 73 |
| Country of origin | Czech Republic |
