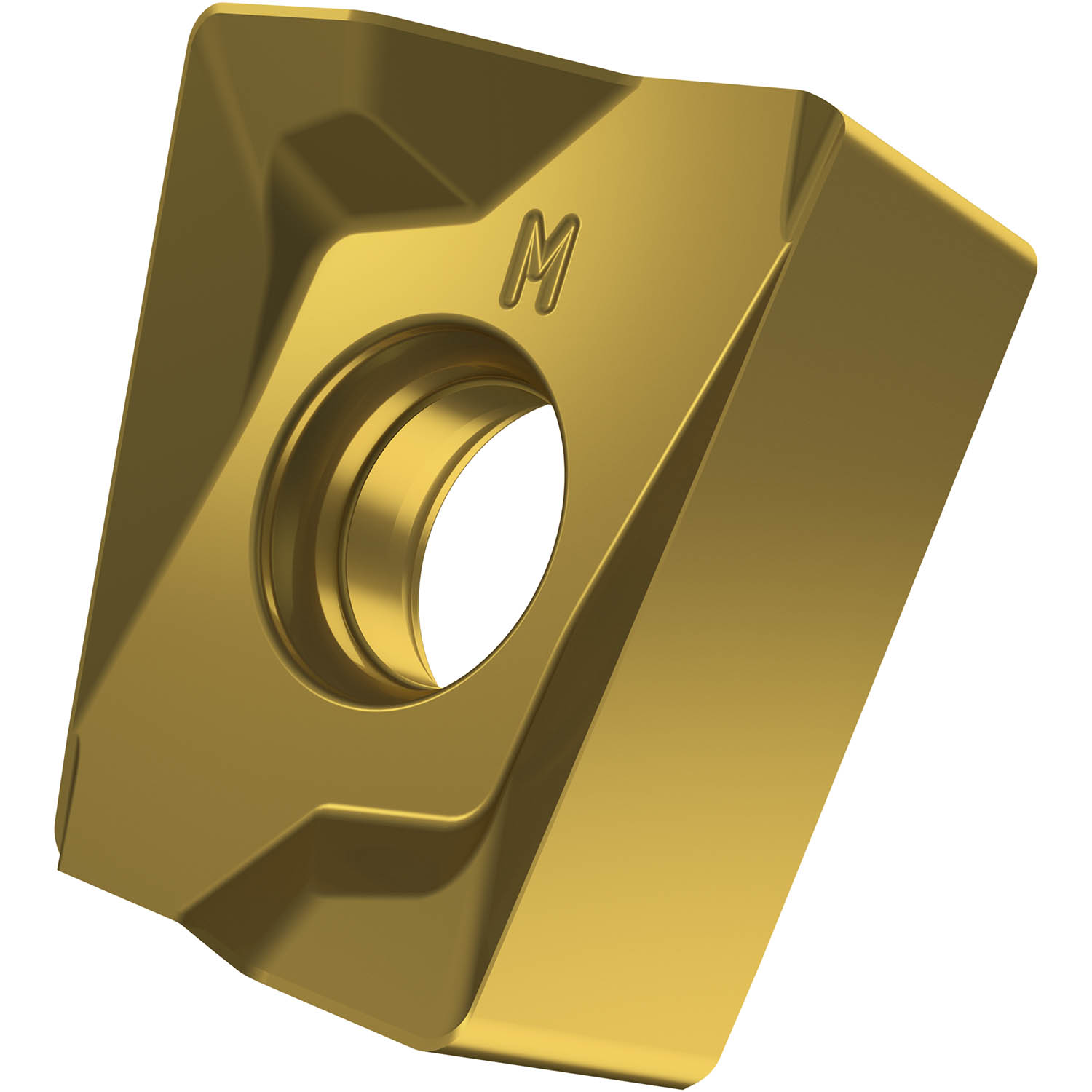

Double-sided milling insert LNMU 1607 with chip-breakers, rectangular for a maximum depth of cut of 13.0 mm, with 4.0 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with shoulder mills SLN16.
Product Specifications
| EDP Number | 6941418 |
| Maximum Depth of Cut (mm) | 13 mm |
| Max Depth of Cut (Inch) | 0.512" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.7 mm |
| Fixing Hole Diameter (Inch) | 0.224" |
| Cutting Edge Length (mm) | 16.6 mm |
| Cutting Edge Length (Inch) | 0.654" |
| Insert Width (mm) | 13.2 mm |
| Insert Width (Inch) | 0.52" |
| Insert Thickness (mm) | 7.5 mm |
| Insert Thickness (Inch) | 0.295" |
| Corner Radius (mm) | 4 mm |
| Corner Radius (Inch) | 0.157" |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
