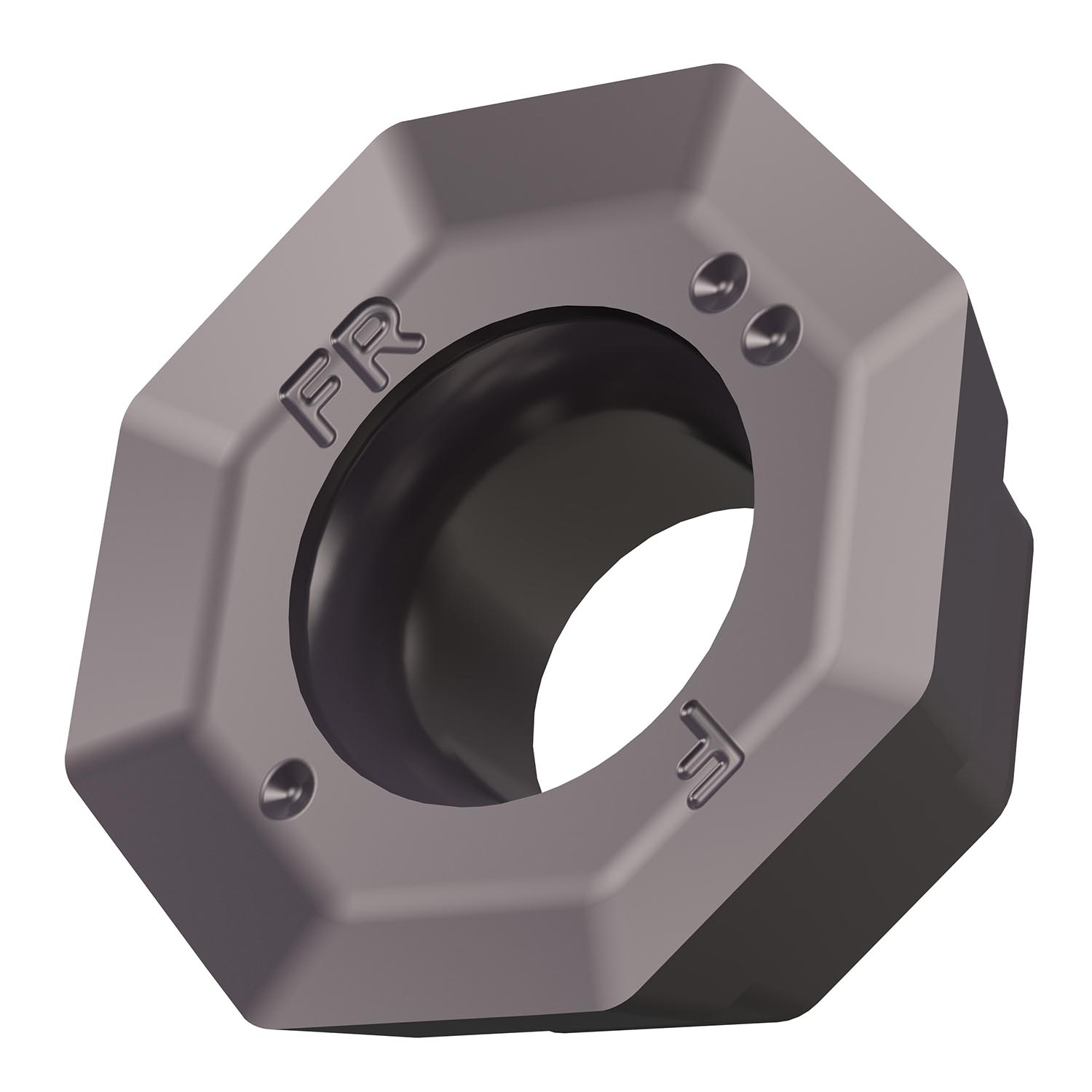

Single-sided milling insert ODKT 0505 with chip-breakers, octagonal for a maximum depth of cut of 2.7 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-K and F geometry with sharp cutting edges, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01-P10 for machining of steel with copy face mills SOD05.
Product Specifications
| EDP Number | 7342891 |
| Maximum Depth of Cut (mm) | 2.7 mm |
| Max Depth of Cut (Inch) | 0.106" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| Insert Thickness (mm) | 5.56 mm |
| Insert Thickness (Inch) | 0.219" |
| Wiper Edge Length (mm) | 1 mm |
| Wiper Edge Length (Inch) | 0.039" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | PVD |
| Coating | M8310 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.2 mm |
| Min Depth of Cut (Inch) | 0.008" |
