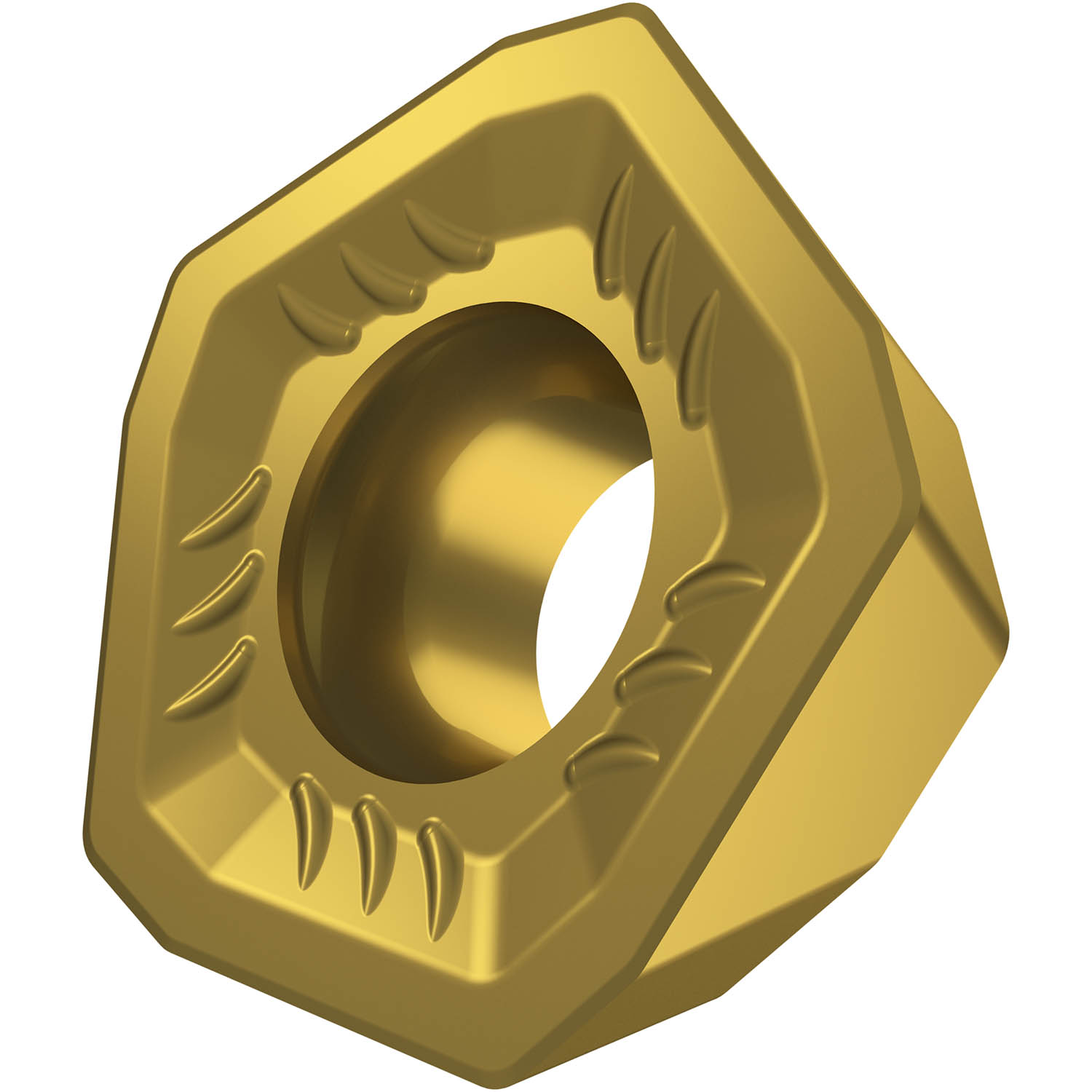

Single-sided milling insert PDMX 0905, pentagonal for a maximum depth of cut of 2.0 mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron with high feed cutters SPD09.
Product Specifications
| EDP Number | 7447927 |
| Maximum Depth of Cut (mm) | 2 mm |
| Max Depth of Cut (Inch) | 0.079" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Cutting Edge Length (mm) | 9 mm |
| Cutting Edge Length (Inch) | 0.354" |
| Inscribed Circle Diameter (mm) | 13.5 mm |
| Inscribed Circle Diameter (Inch) | 0.531" |
| Insert Thickness (mm) | 5.47 mm |
| Insert Thickness (Inch) | 0.215" |
| Wiper Edge Length (mm) | 2 mm |
| Wiper Edge Length (Inch) | 0.079" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
10
