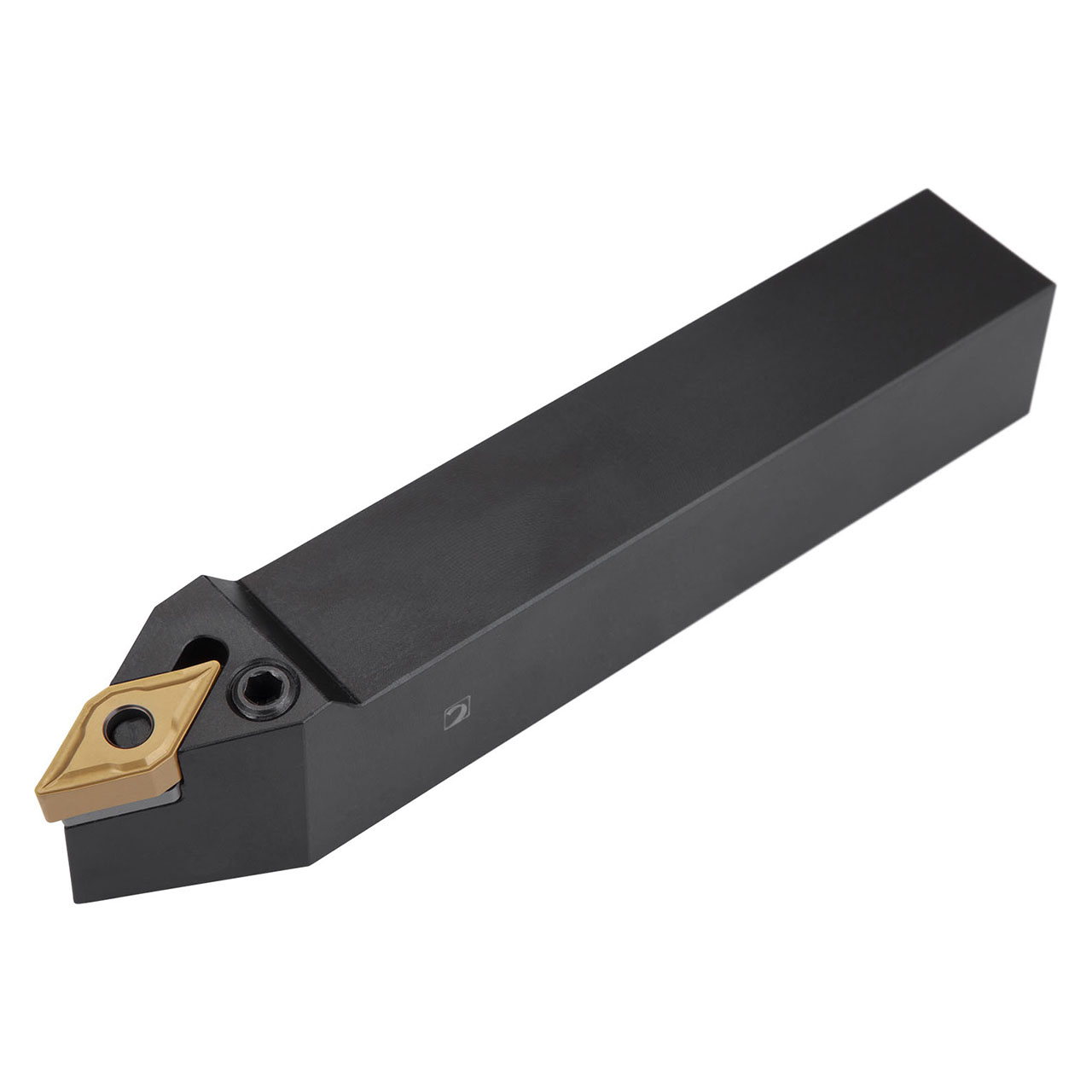

Lever lock turning tool for holding a 55 Degree rhombus negative insert with an inscribed circle diameter of 9.525 mm, 4.76 mm thick (ISO designation DN.. 1104.. ), right hand 62 Degree30' side cutting with straight shank, 25 mm tool height x 25 mm width x 150 mm long for single and multi-directional copy turning.
Product Specifications
| EDP Number | 6756756 |
| Functional Height (mm) | 25 mm |
| Functional Width (mm) | |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 25 mm |
| Shank Width (mm) | 25 mm |
| Functional Length (mm) | 150 mm |
| Head Length (mm) | 30 mm |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
