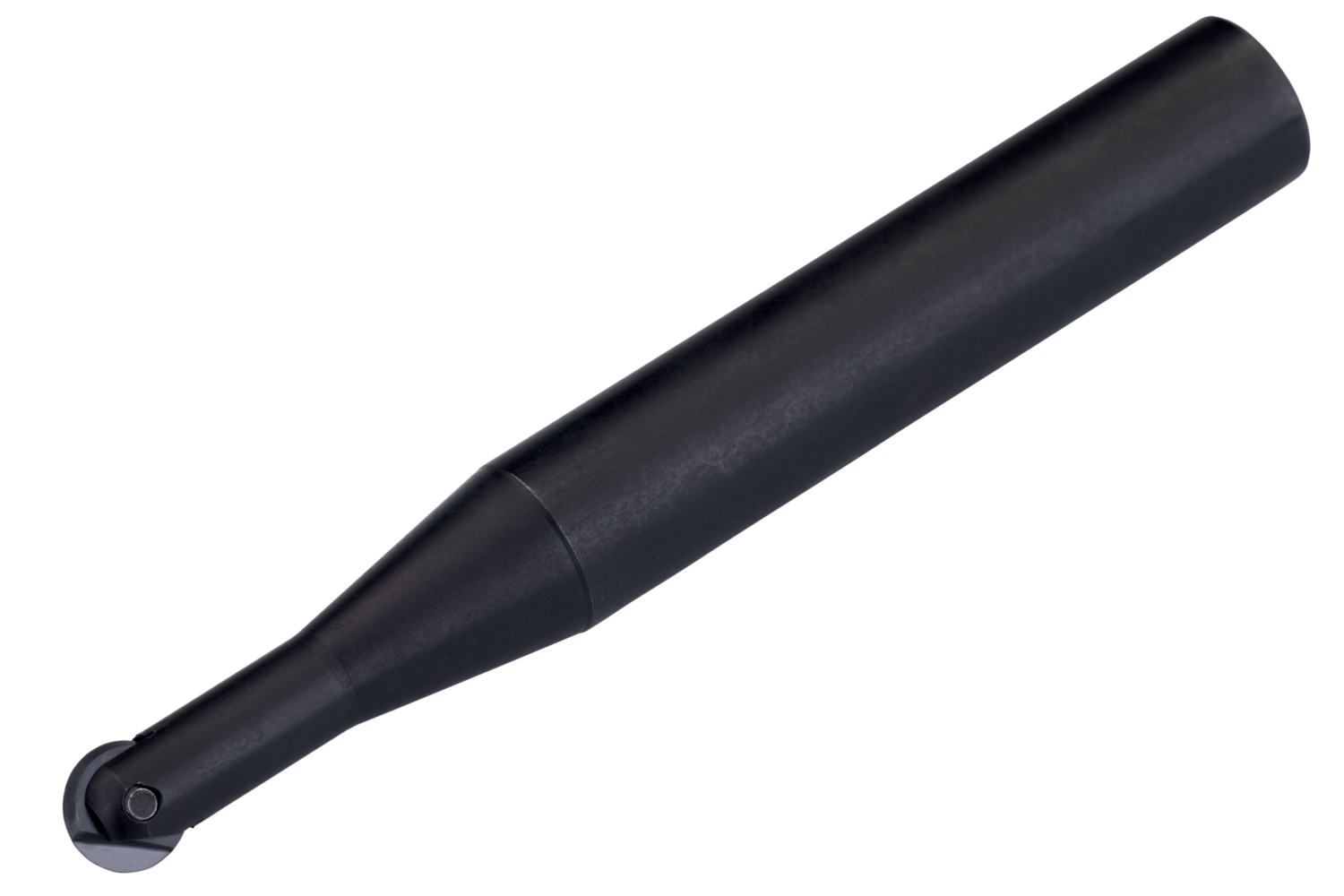

Copy end mill which utilises 1 off PPH 12.., PPHE 12.., PPHT 12.. or PPHF 12.. single-sided insert, cutting diameter 12 mm with 16 mm parallel shank according to DIN 1835A, 22.5 mm functional and 145 mm overall length for copy milling with a maximum depth of cut of 0.3-4.0 mm.
Product Specifications
| EDP Number | 7024746 |
| Insert Index Count | 1 |
| Max Rotational Speed | 19800 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Max Cutting Diameter (mm) | 12 mm |
| Body Diameter (mm) | 10 mm |
| Body Diameter (Inch) | 0.394" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 85 mm |
| Max Usable Length (mm) | 63.3 mm |
| 22.5 mm |
| Country of origin | Czech Republic |
