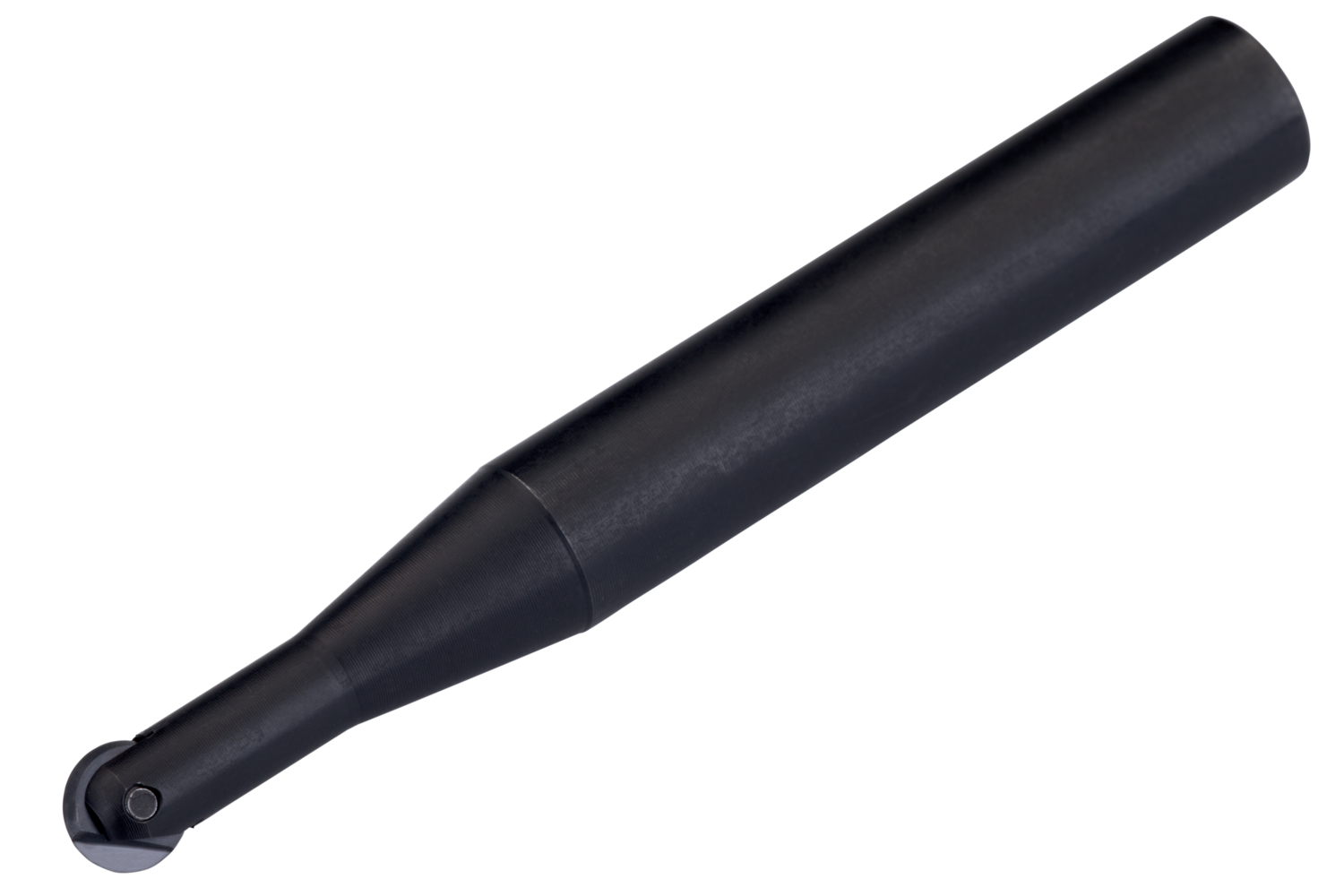

Copy end mill which utilises 1 off PPH 16.., PPHE 16.., PPHT 16.. or PPHF 16.. single-sided insert, cutting diameter 16 mm with 20 mm parallel shank according to DIN 1835A, 29.5 mm functional and 166 mm overall length for copy milling with a maximum depth of cut of 0.3-4.0 mm.
Product Specifications
| EDP Number | 7024754 |
| Insert Index Count | 1 |
| Max Rotational Speed | 20000 |
| Connection Diameter (mm) | 20 mm |
| Connection Diameter (Inch) | 0.787" |
| Max Cutting Diameter (mm) | 16 mm |
| Body Diameter (mm) | 14 mm |
| Body Diameter (Inch) | 0.551" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 100 mm |
| Max Usable Length (mm) | 75.5 mm |
| 29.5 mm |
| Country of origin | Czech Republic |
