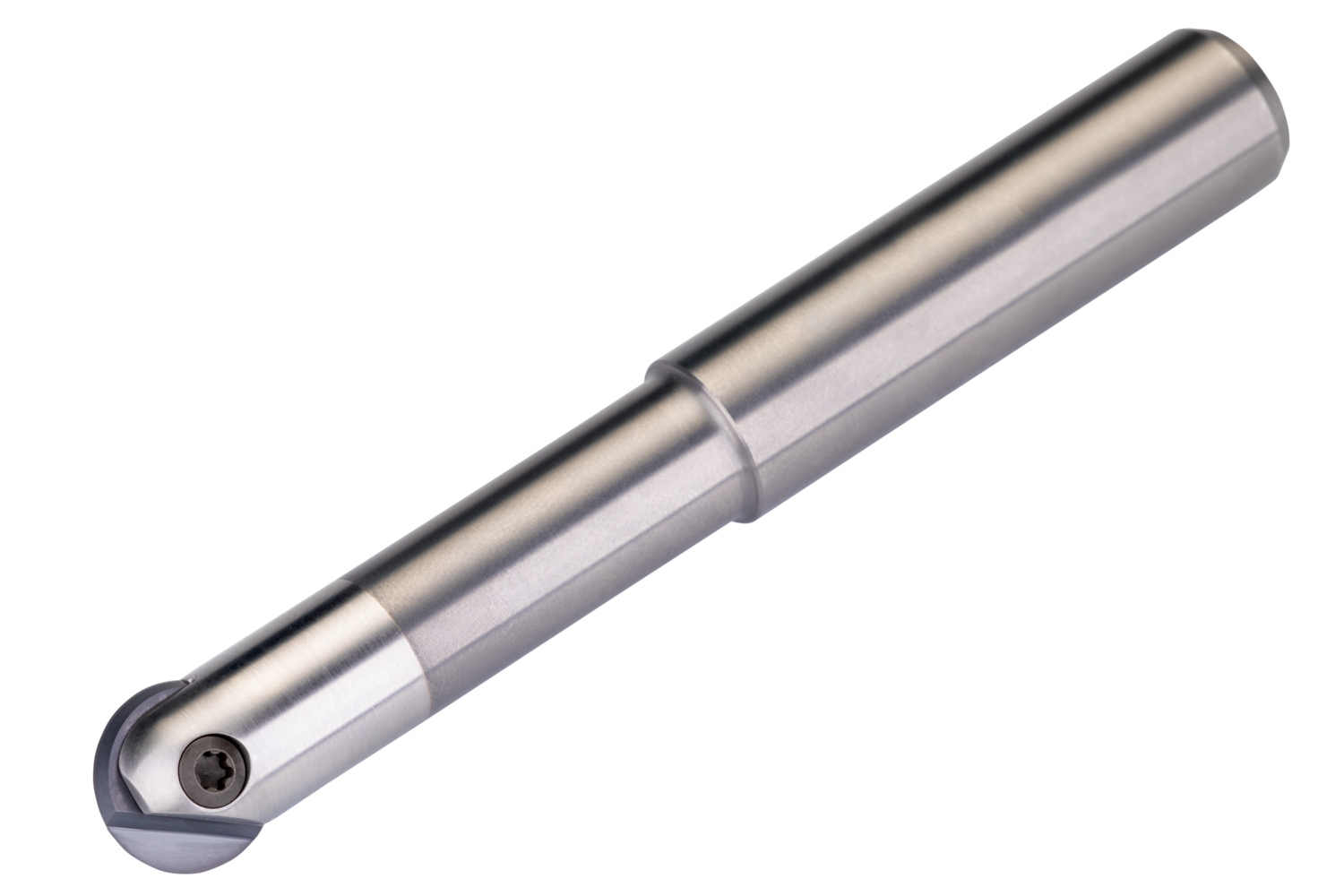

Copy end mill which utilises 1 off PPH 20, PPHE 20, PPHT 20 or PPHF 20 single-sided insert, cutting diameter 20 mm with 20 mm carbide parallel shank according to DIN 1835A, 104 mm overall length for copy milling with a maximum depth of cut of 0.3-4.0 mm.
Product Specifications
| EDP Number | 7024758 |
| Insert Index Count | 1 |
| Max Rotational Speed | 40000 |
| Connection Diameter (mm) | 20 mm |
| Connection Diameter (Inch) | 0.787" |
| Max Cutting Diameter (mm) | 20 mm |
| Body Diameter (mm) | 17 mm |
| Body Diameter (Inch) | 0.669" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 38 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
1
