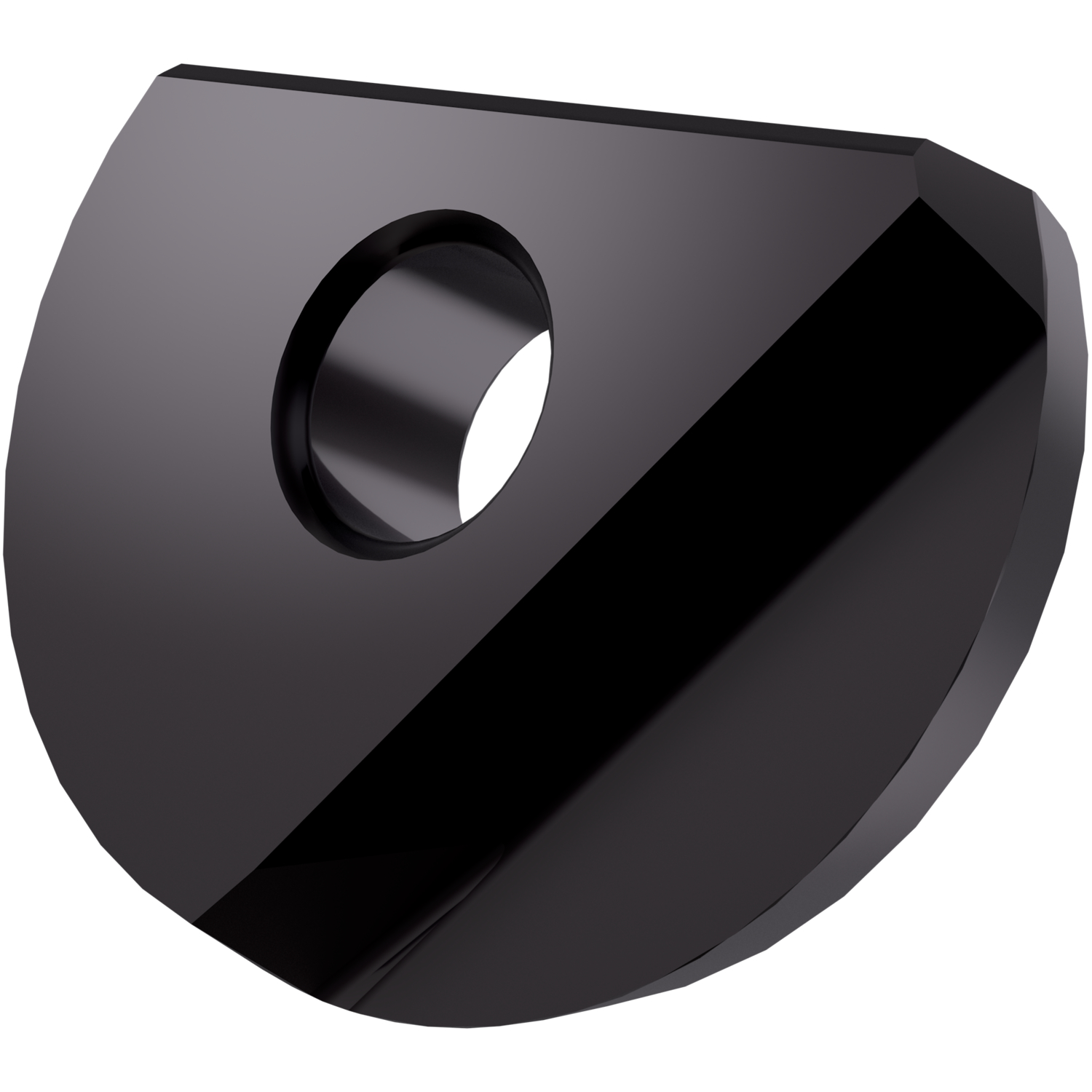

Pramet PPH 2000-CL4:8215 | 5 mm Thickness 8215 Grade Milling Insert

$40.30 $28.29
(You save $12.01)
Brand:
Pramet
interval quantity:
10
SKU:
23145542
UPC:
Weight:
0.03 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Related Products

Ball nosed copy milling insert with a diameter of 20 mm for a maximum depth of cut of 2.0 mm, CL4 geometry and 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10-P20 and K10-K25 for machining of steel, cast-iron and hardened material with copy end mills K2-PPH.

Product Specifications
EDP Number7156092
Maximum Depth of Cut (mm)2 mm
Max Depth of Cut (Inch)0.079"
Coating Property1
Fixing Hole Diameter (mm)5 mm
Fixing Hole Diameter (Inch)0.197"
Insert Cutting Diameter (mm)20 mm
Insert Length (mm)15 mm
Insert Length (Inch)0.591"
Insert Thickness (mm)5 mm
Insert Thickness (Inch)0.197"
Coating ProcessPVD
Coating8215
Surface ColorPurple - Black
Insert Cutting Diameter (Inch)0.787"
Min Depth of Cut (mm)0.1 mm
Min Depth of Cut (Inch)0.004"
Country of originCzech Republic
