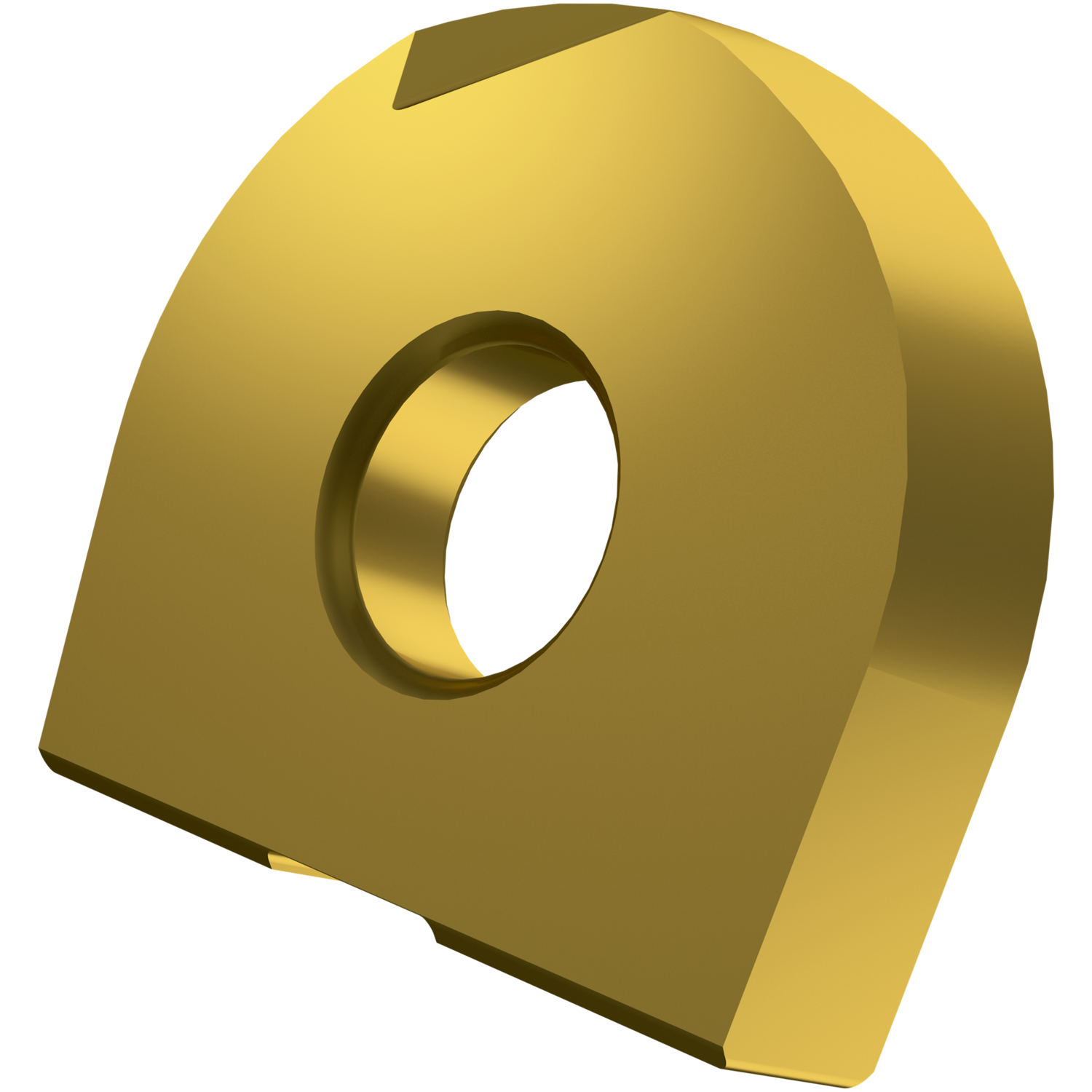

Ball nosed copy milling insert with a diameter of 10 mm for a maximum depth of cut of 1.0 mm, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy end mills K2-SRC.
Product Specifications
| EDP Number | 7637785 |
| Maximum Depth of Cut (mm) | 1 mm |
| Max Depth of Cut (Inch) | 0.039" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4 mm |
| Fixing Hole Diameter (Inch) | 0.157" |
| Insert Cutting Diameter (mm) | 10 mm |
| Insert Length (mm) | 11.5 mm |
| Insert Length (Inch) | 0.453" |
| Insert Thickness (mm) | 2.5 mm |
| Insert Thickness (Inch) | 0.098" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Insert Cutting Diameter (Inch) | 0.394" |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
