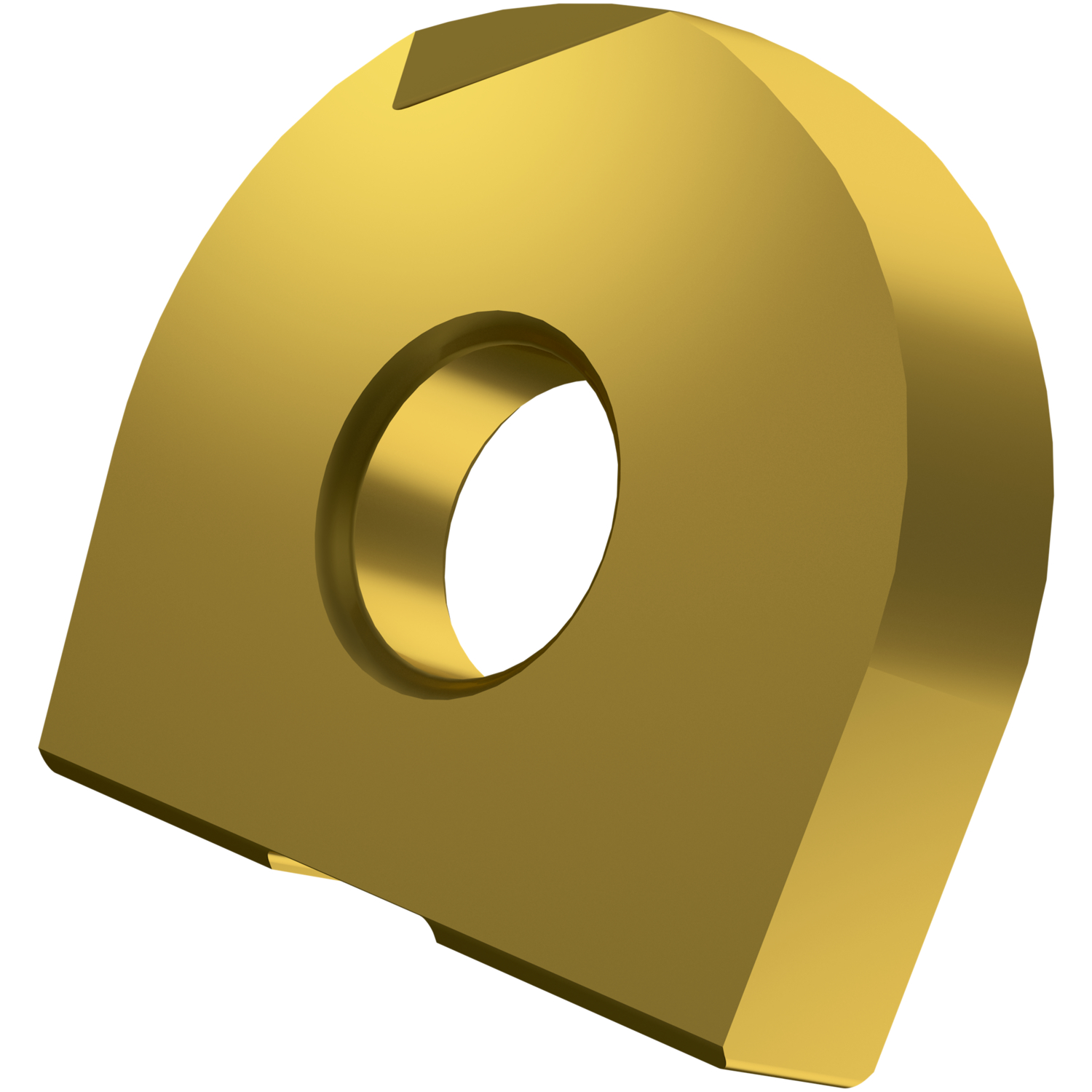

Ball nosed copy milling insert with a diameter of 32 mm for a maximum depth of cut of 3.2 mm, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy end mills K2-SRC.
Product Specifications
| EDP Number | 7637801 |
| Maximum Depth of Cut (mm) | 3.2 mm |
| Max Depth of Cut (Inch) | 0.126" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 8 mm |
| Fixing Hole Diameter (Inch) | 0.315" |
| Insert Cutting Diameter (mm) | 32 mm |
| Insert Length (mm) | 25.8 mm |
| Insert Length (Inch) | 1.016" |
| Insert Thickness (mm) | 5 mm |
| Insert Thickness (Inch) | 0.197" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Insert Cutting Diameter (Inch) | 1.26" |
| Min Depth of Cut (mm) | 0.6 mm |
| Min Depth of Cut (Inch) | 0.024" |
