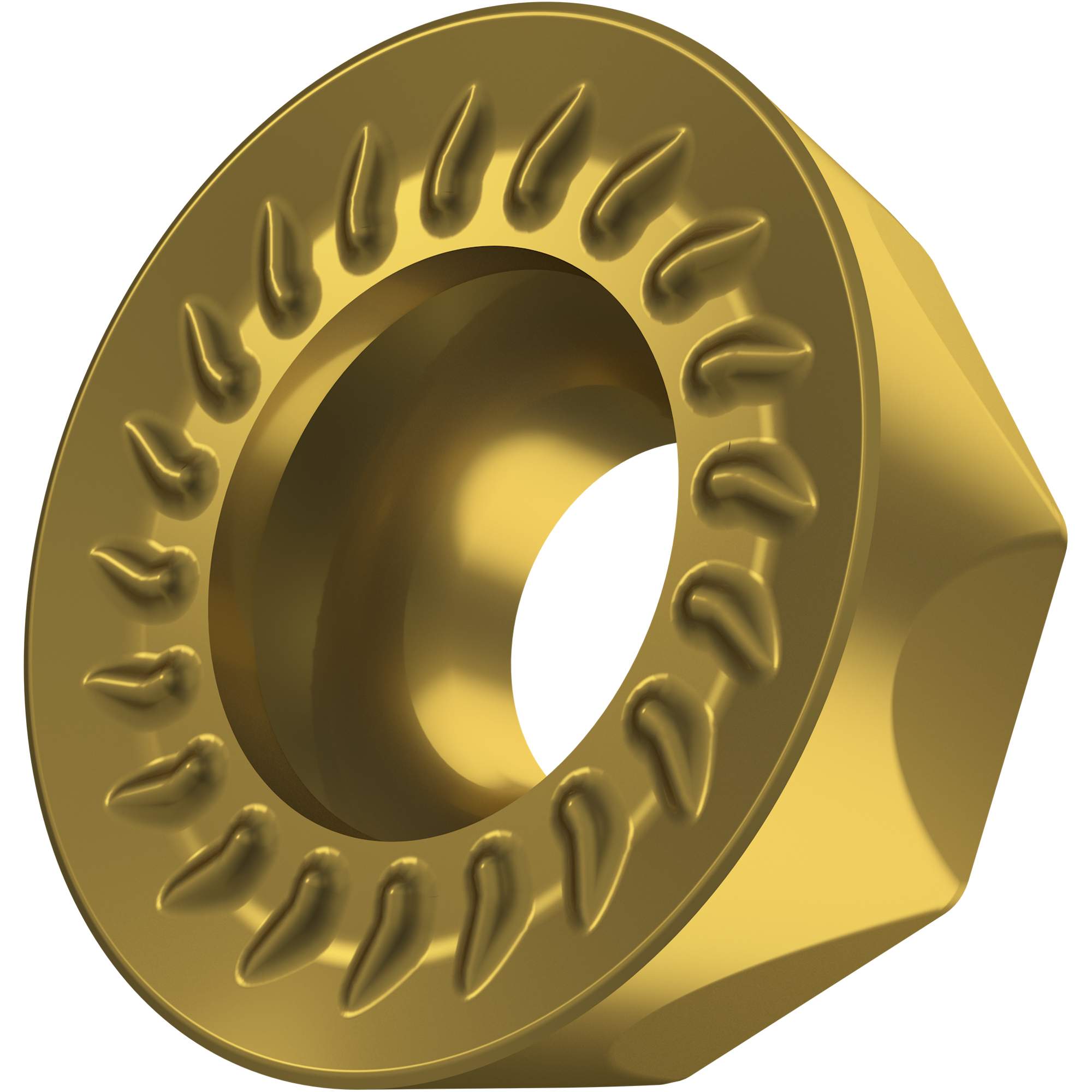

Single-sided milling insert RCMT 10T3 with chip-breakers, round for a maximum depth of cut of 5.0 mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50/M20-M40 and S20-S30 for machining of steel, stainless-steel and superalloy with copy face mills SRC10.
Product Specifications
| EDP Number | 7445884 |
| Maximum Depth of Cut (mm) | 5 mm |
| Max Depth of Cut (Inch) | 0.197" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.9 mm |
| Fixing Hole Diameter (Inch) | 0.154" |
| Insert Diameter (mm) | 10 mm |
| Insert Diameter (Inch) | 0.394" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
