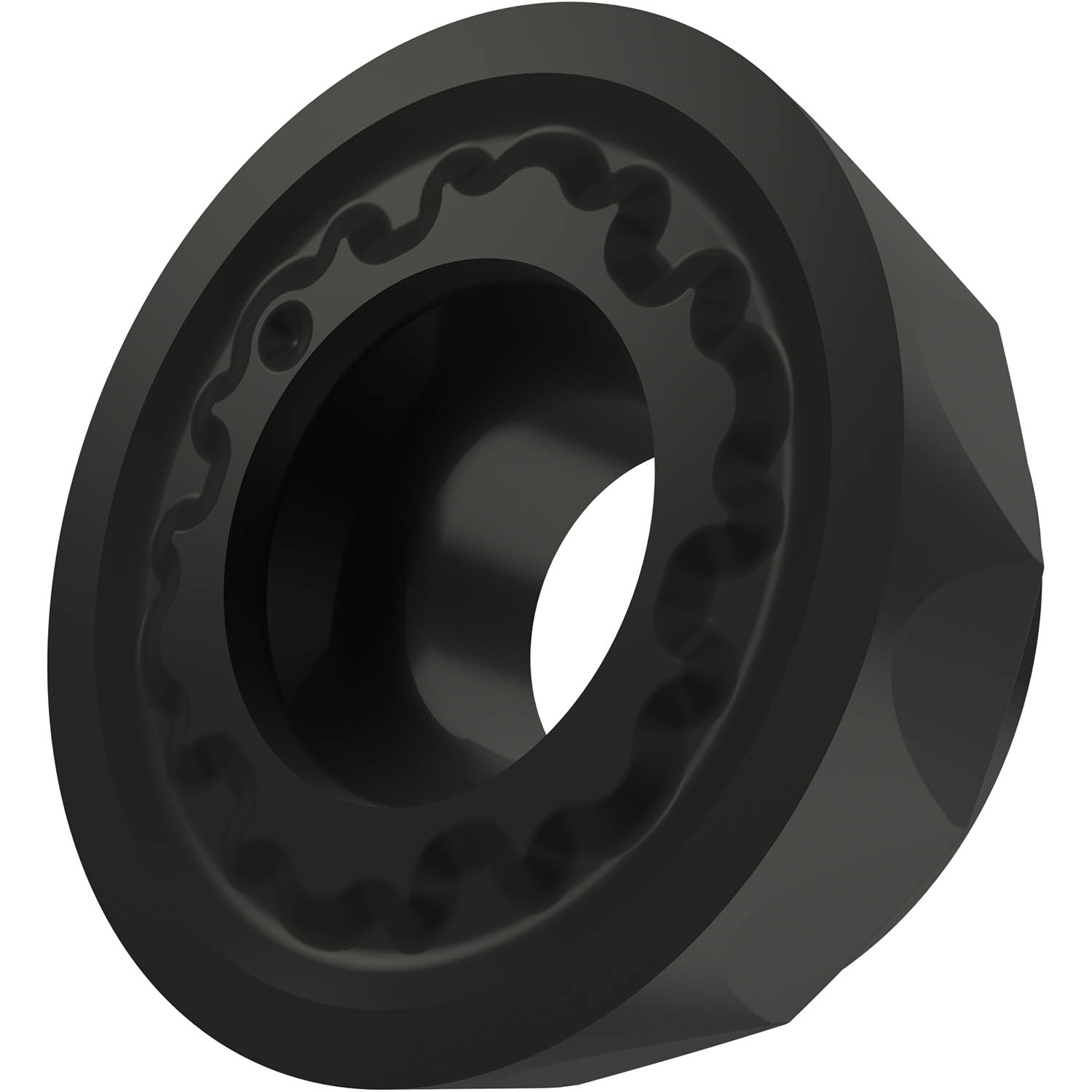

Single-sided milling insert RCMT 1204 with chip-breakers, round for a maximum depth of cut of 6.0 mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M9315 MT-CVD coated WC-Co carbide within ISO-grade range P05-P25 for machining of steel with copy face mills SRC12.
Product Specifications
| EDP Number | 6922560 |
| Maximum Depth of Cut (mm) | 6 mm |
| Max Depth of Cut (Inch) | 0.236" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Fixing Hole Diameter (Inch) | 0.173" |
| Insert Diameter (mm) | 12 mm |
| Insert Diameter (Inch) | 0.472" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | MT-CVD |
| Coating | M9315 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
