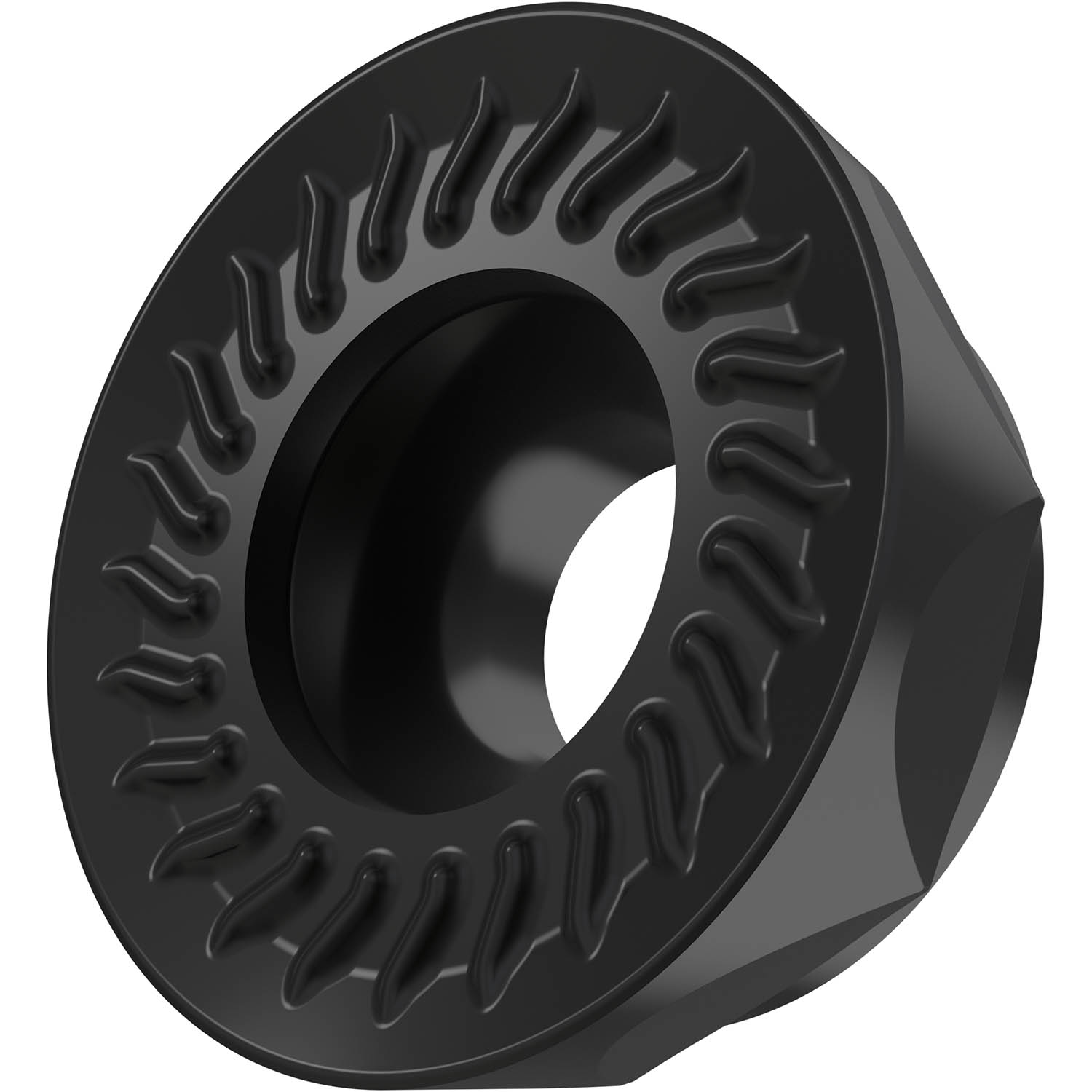

Single-sided milling insert RCMT 1606 with chip-breakers, round for a maximum depth of cut of 8.0 mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with copy face mills SRC16.
Product Specifications
| EDP Number | 6756056 |
| Maximum Depth of Cut (mm) | 8 mm |
| Max Depth of Cut (Inch) | 0.315" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Insert Diameter (mm) | 16 mm |
| Insert Diameter (Inch) | 0.63" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Coating Process | PVD |
| Coating | M8345 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
