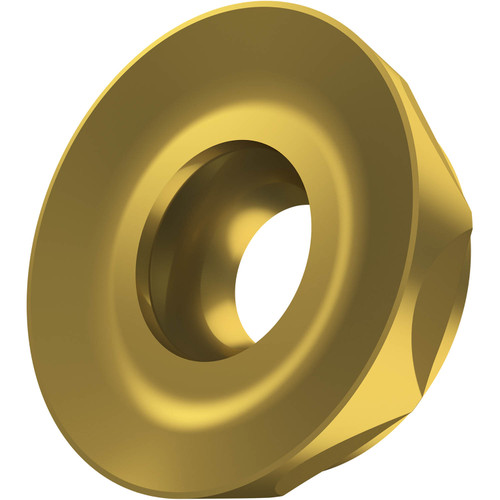

Single-sided milling insert RCMT 2006 with chip-breakers, round for a maximum depth of cut of 10.0 mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of steel with copy face mills SRC20.
Product Specifications
| EDP Number | 6922562 |
| Maximum Depth of Cut (mm) | 10 mm |
| Max Depth of Cut (Inch) | 0.394" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 6.5 mm |
| Fixing Hole Diameter (Inch) | 0.256" |
| Insert Diameter (mm) | 20 mm |
| Insert Diameter (Inch) | 0.787" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Coating Process | MT-CVD |
| Coating | M9325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
