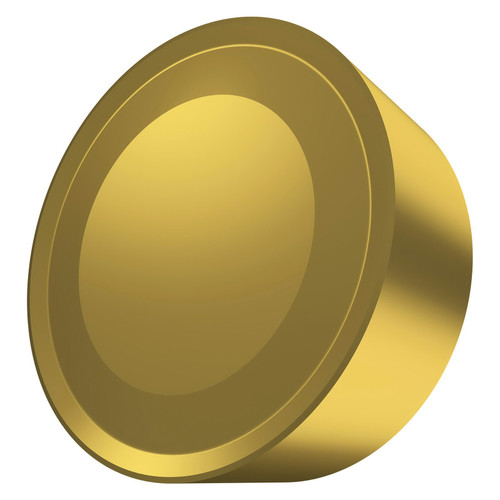

Special design positive turning insert, round with 7° clearance, a diameter of 16 mm, 6.35 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker 331 with rounded cutting edges with facet, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for heavy to medium machining of steels.
Product Specifications
| EDP Number | 6753832 |
| Maximum Depth of Cut (mm) | 4 mm |
| Max Depth of Cut (Inch) | 0.157" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.2 mm |
| Fixing Hole Diameter (Inch) | 0.205" |
| Insert Diameter (mm) | 16 mm |
| Insert Diameter (Inch) | 0.63" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Coating Process | MT-CVD |
| Coating | T9325 |
| Surface Color | Black |
| Chipbreaker Manufacturer's Designation | 331 |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of cut (Inch) | 0.039" |
