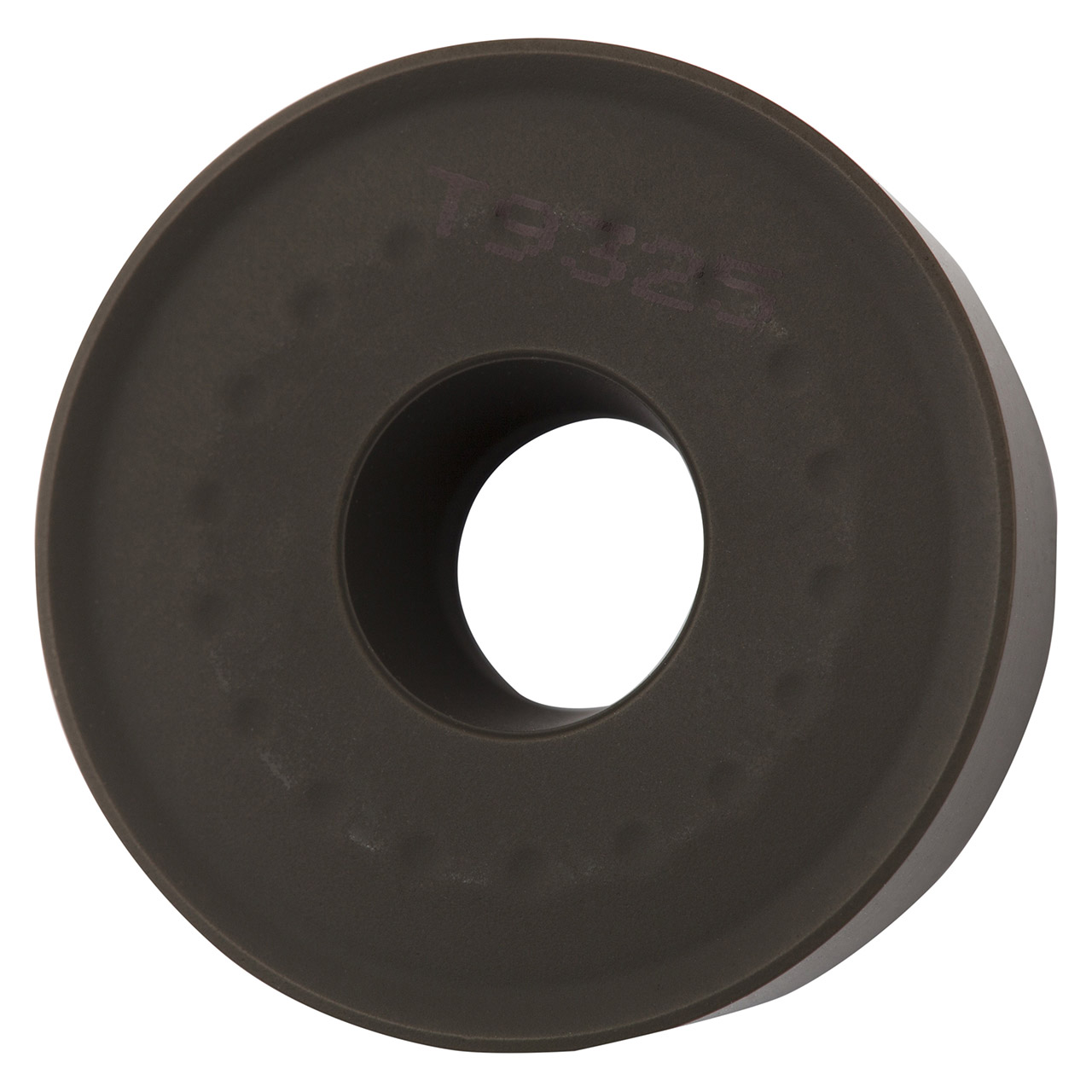

Special design positive turning insert, round with 7° clearance, a diameter of 25 mm, 7.94 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM2, in grade T9310, a MT-CVD coated functionally graded WC-Co carbide within ISO range P01-P15, for heavy to medium machining of steels.
Product Specifications
| EDP Number | 6755588 |
| Max Depth of Cut (mm) | 7 mm |
| Max Depth of cut (Inch) | 0.276" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 7.2 mm |
| Fixing Hole Diameter (Inch) | 0.283" |
| Insert Diameter (mm) | 25 mm |
| 0.984" | |
| Insert Thickness (mm) | 7.94 mm |
| Insert Thickness (Inch) | 0.313" |
| Coating Process | MT-CVD |
| Coating | T9310 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 2 mm |
| Min Depth of Cut (Inch) | 0.079" |
| Chipbreaker Manufacturer's Designation | RM2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3130"
Thickness (mm):
7.94mm
interval quantity:
10
