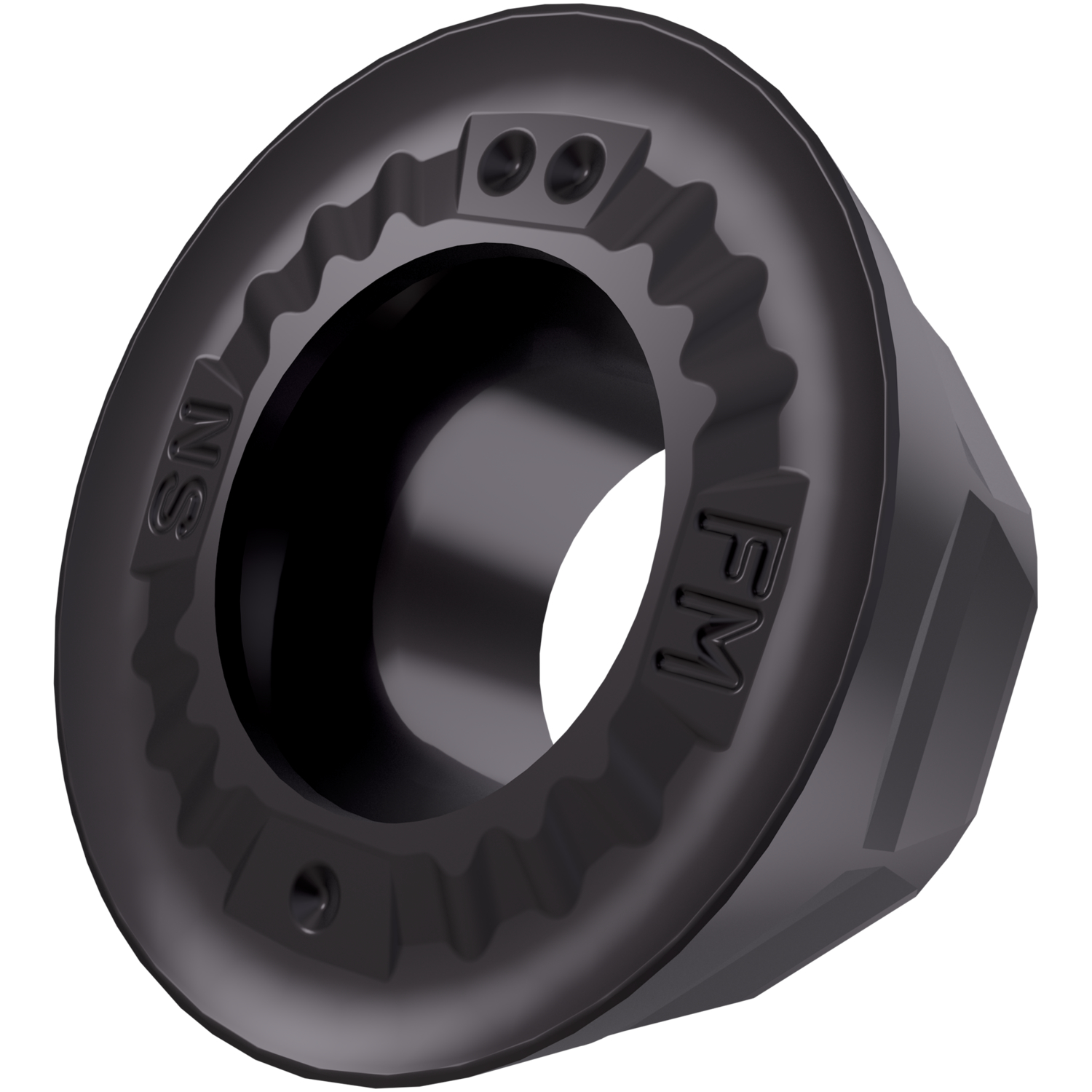

Single-sided milling insert RDGT 1205 with chip-breakers, round for a maximum depth of cut of 6.0 mm, with an indexing accuracy according to ISO-tolerance class-G and FM geometry with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with copy face mills SOD05.
Product Specifications
| EDP Number | 7342902 |
| Maximum Depth of Cut (mm) | 6 mm |
| Max Depth of Cut (Inch) | 0.236" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Insert Diameter (mm) | 12.7 mm |
| Insert Diameter (Inch) | 0.5" |
| Insert Thickness (mm) | 5.56 mm |
| Insert Thickness (Inch) | 0.219" |
| Coating Process | PVD |
| Coating | M8345 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.2 mm |
| Min Depth of Cut (Inch) | 0.008" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
