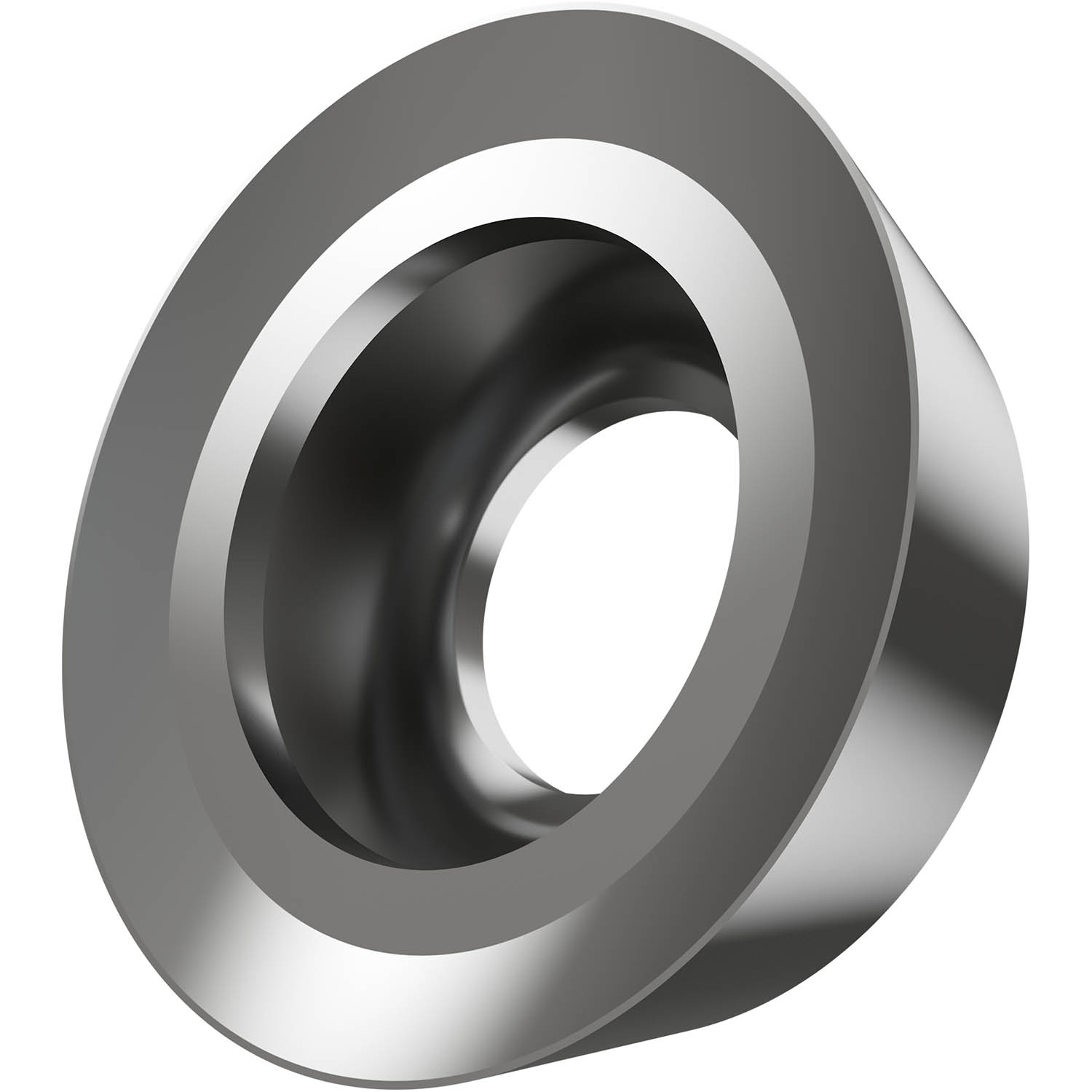

Single-sided milling insert RDHT 1604 with chip-breakers, round for a maximum depth of cut of 4.0 mm, with an indexing accuracy according to ISO-tolerance class-H and FA geometry, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with copy face mills SRD16.
Product Specifications
| EDP Number | 6751853 |
| Maximum Depth of Cut (mm) | 4 mm |
| Max Depth of Cut (Inch) | 0.157" |
| Fixing Hole Diameter (mm) | 5.2 mm |
| Fixing Hole Diameter (Inch) | 0.205" |
| Insert Diameter (mm) | 16 mm |
| Insert Diameter (Inch) | 0.63" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating | HF7 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
