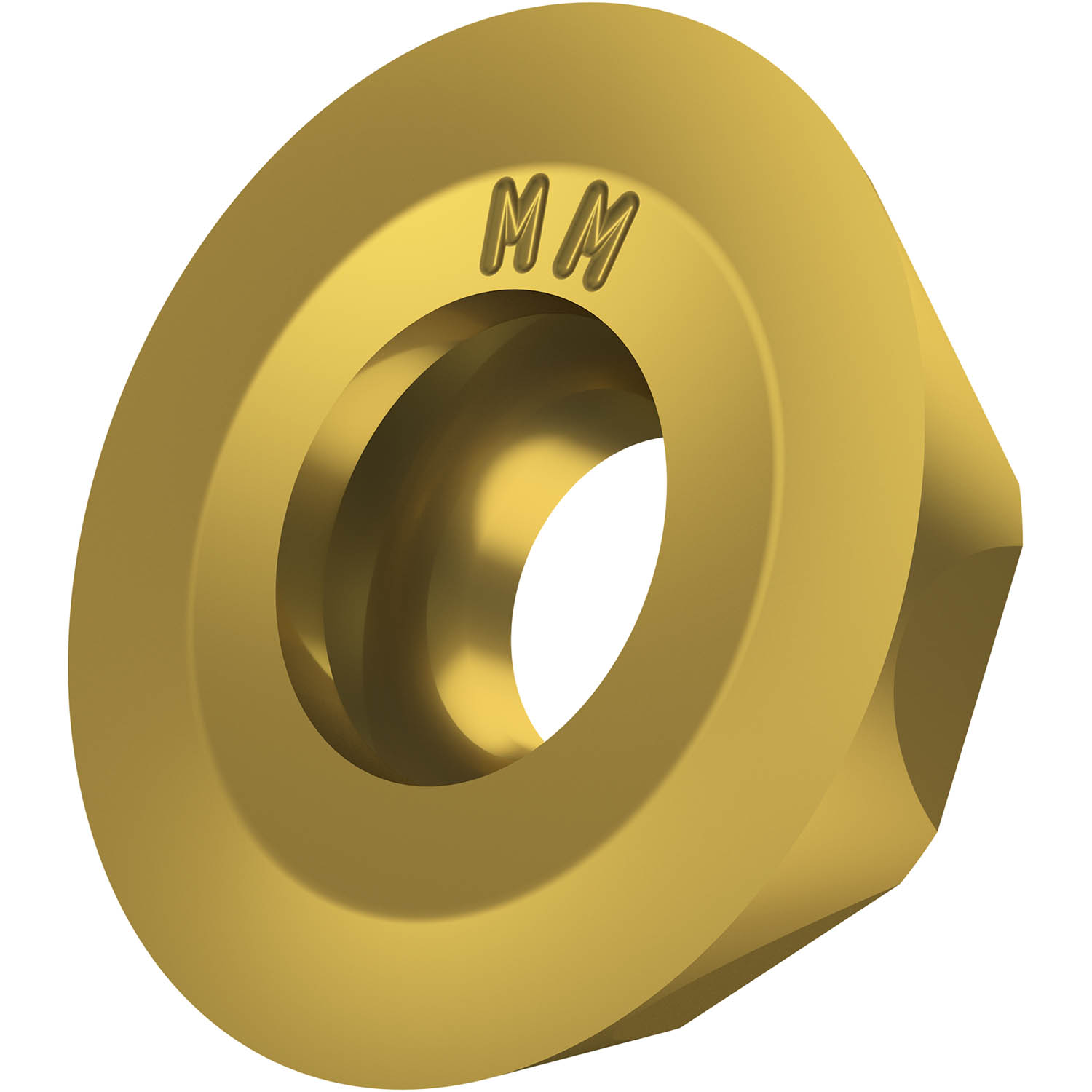

Single-sided milling insert REHT 1604 with chip-breakers, round for a maximum depth of cut of 4.0 mm, with an indexing accuracy according to ISO-tolerance class-H and mm geometry with rounded cutting edges, M6330 PVD coated WC-Co carbide within ISO-grade ranges M20-M35 and S10-S30 for machining of stainless-steel and superalloy with face mills SOE06Z.
Product Specifications
| EDP Number | 6931678 |
| Maximum Depth of Cut (mm) | 4 mm |
| Max Depth of Cut (Inch) | 0.157" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Insert Diameter (mm) | 16 mm |
| Insert Diameter (Inch) | 0.63" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | PVD |
| Coating | M6330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
| Country of origin | Czech Republic |
