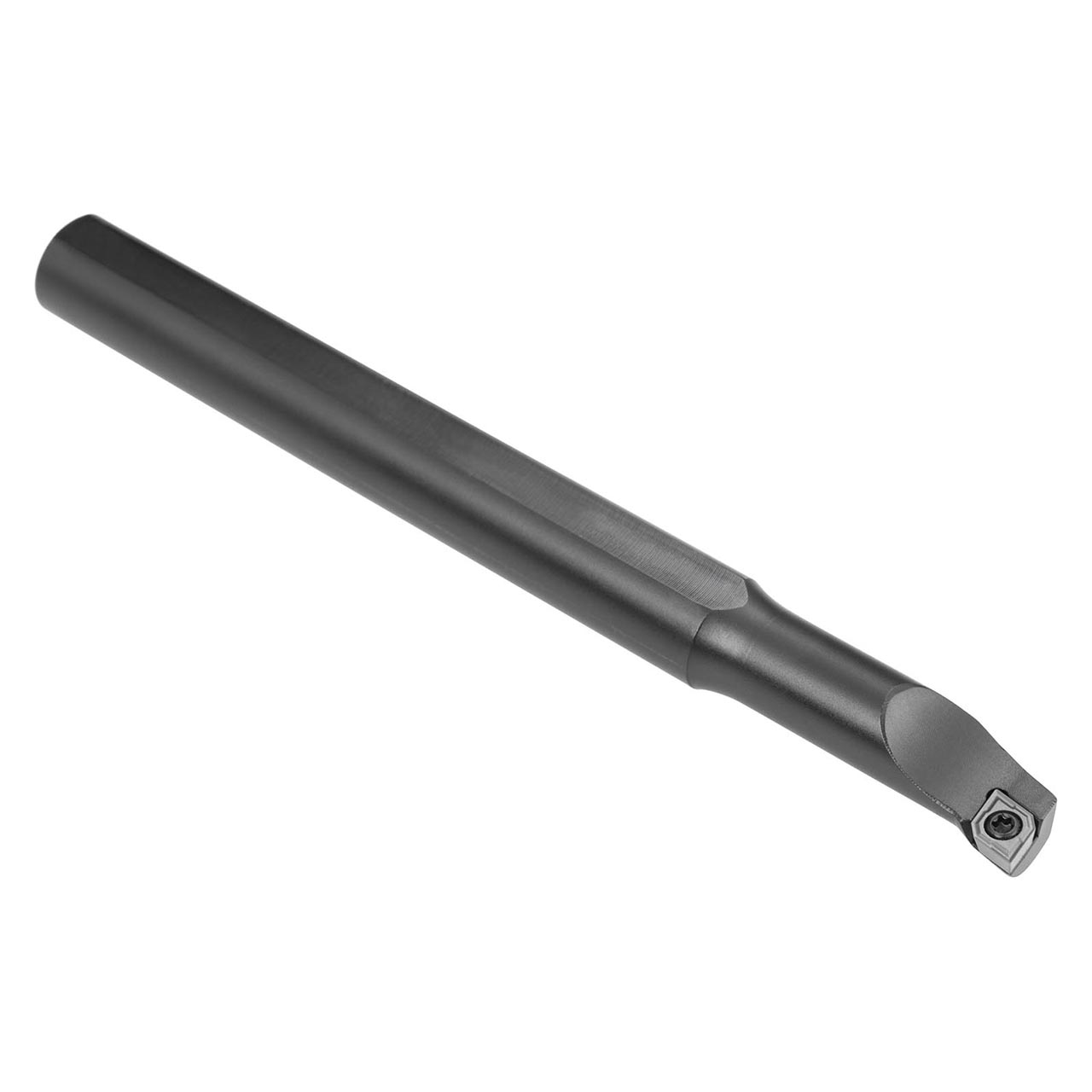

Pramet S0608H-SELPL 05 | 100 mm Functional Length Indexable Turning Toolholder

$125.00 $116.25
(You save $8.75)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
interval quantity:
1
SKU:
23144304
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Screw clamp boring bar for holding a 75 Degree rhombus positive insert with an inscribed circle diameter of 5.56 mm, 2.38 mm thick (ISO designation EP.. 0502.. ), left hand 95 Degree side and end cutting with off-set shank, steel without coolant hole, 6 mm diameter x 100 mm long for taper boring and longitudinal boring with and without shoulder.

Product Specifications
EDP Number6760462
Functional Width (mm)
Inclination Angle-10
Maximum Axial Groove Outside Diameter (mm)
Connection Diameter (mm)8 mm
Connection Diameter (Inch)0.315"
Minimum Bore Diameter (mm)
Body Diameter (mm)6 mm
Body Diameter (Inch)0.236"
Functional Length (mm)100 mm
Head Length (mm)20 mm
Direction of ToolLeft
Country of originCzech Republic
