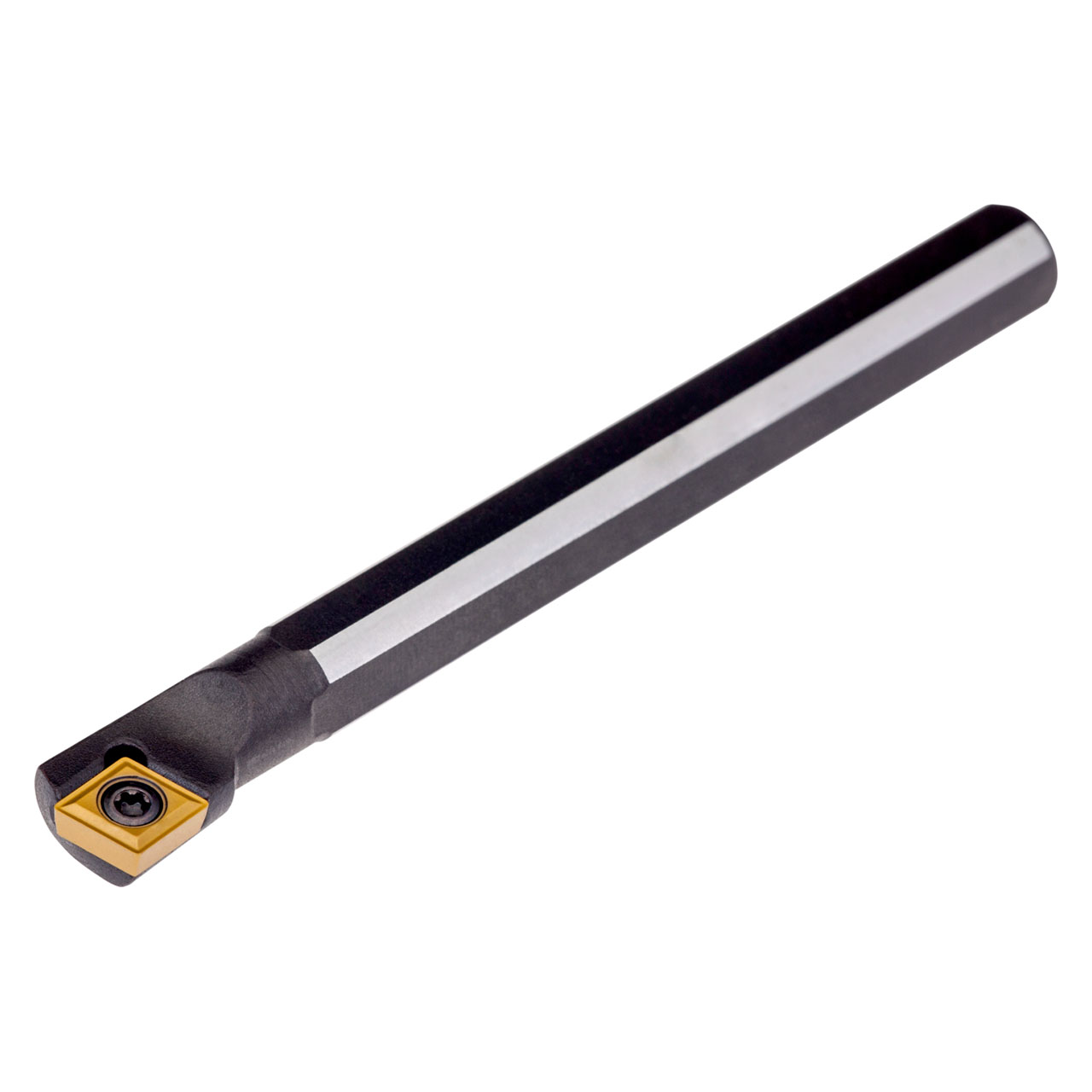

Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 6.35 mm, 2.38 mm thick (ISO designation CC.. 0602.. ), right hand 75° end cutting with off-set shank, steel without coolant hole, 8 mm diameter x 80 mm long for taper boring and longitudinal boring without shoulder.
Product Specifications
| EDP Number | 6757295 |
| Functional Width (mm) | |
| Inclination Angle | -12 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 8 mm |
| Connection Diameter (Inch) | 0.315" |
| Shank Height (mm) | 7.2 mm |
| Shank Width (mm) | 7.6 mm |
| Minimum Bore Diameter (mm) | 20 mm |
| Functional Length (mm) | 80 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
19/64"
Shank Width (Decimal Inch):
0.3000"
Shank Width (mm):
7.6mm
Shank Height (Inch):
9/32"
Shank Height (Decimal Inch):
0.2800"
Shank Height (mm):
7.2mm
