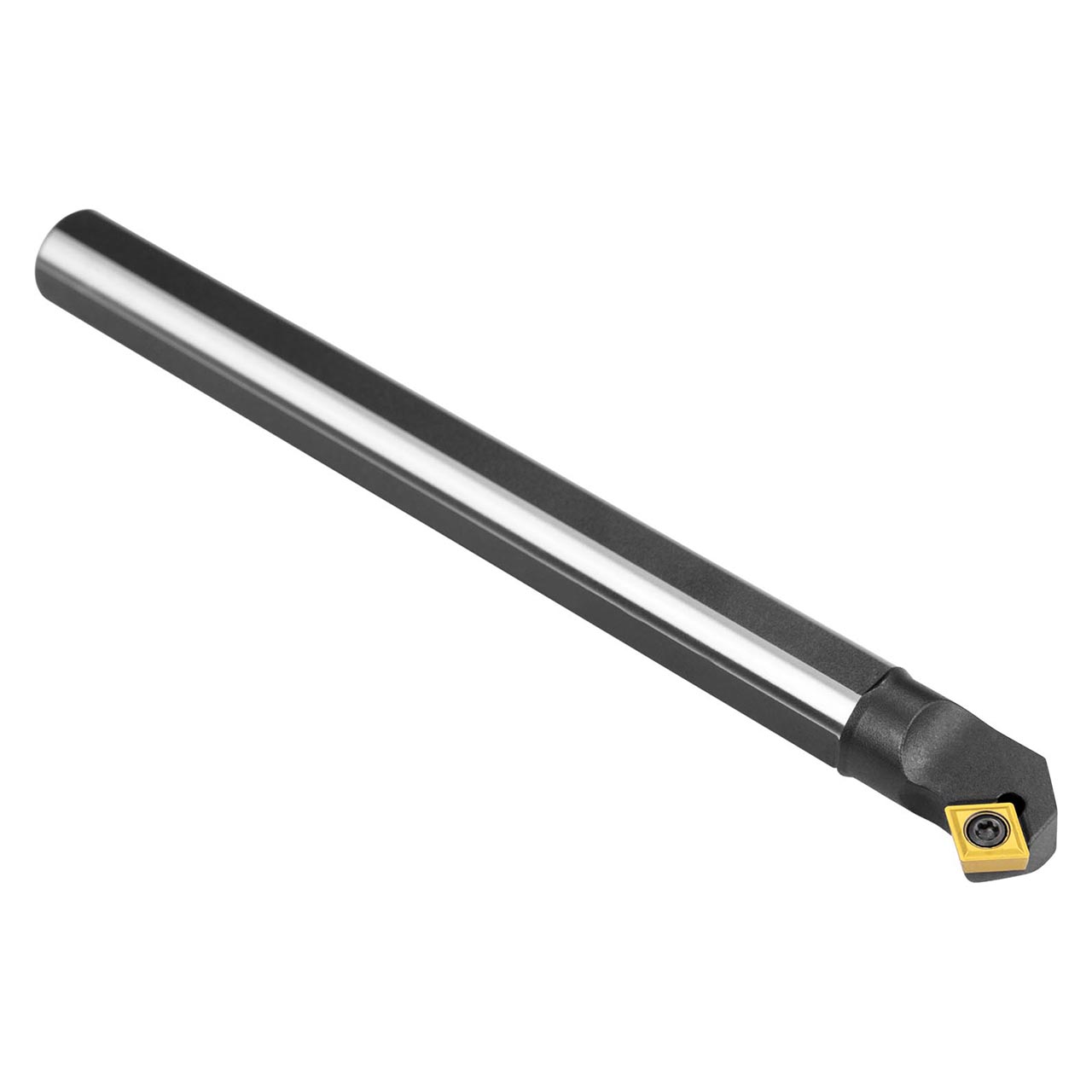

Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 6.35 mm, 2.38 mm thick (ISO designation CC.. 0602.. ), left hand special tool style, steel without coolant hole, 12 mm diameter x 125 mm long for.
Product Specifications
| EDP Number | 6757021 |
| Functional Width (mm) | |
| Inclination Angle | -8 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 12 mm |
| Connection Diameter (Inch) | 0.472" |
| Shank Height (mm) | 11 mm |
| Shank Width (mm) | 11.5 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 125 mm |
| Direction of Tool | Left |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
29/64"
Shank Width (Decimal Inch):
0.4500"
Shank Width (mm):
11.5mm
Shank Height (Inch):
7/16"
Shank Height (Decimal Inch):
0.4300"
Shank Height (mm):
11mm
