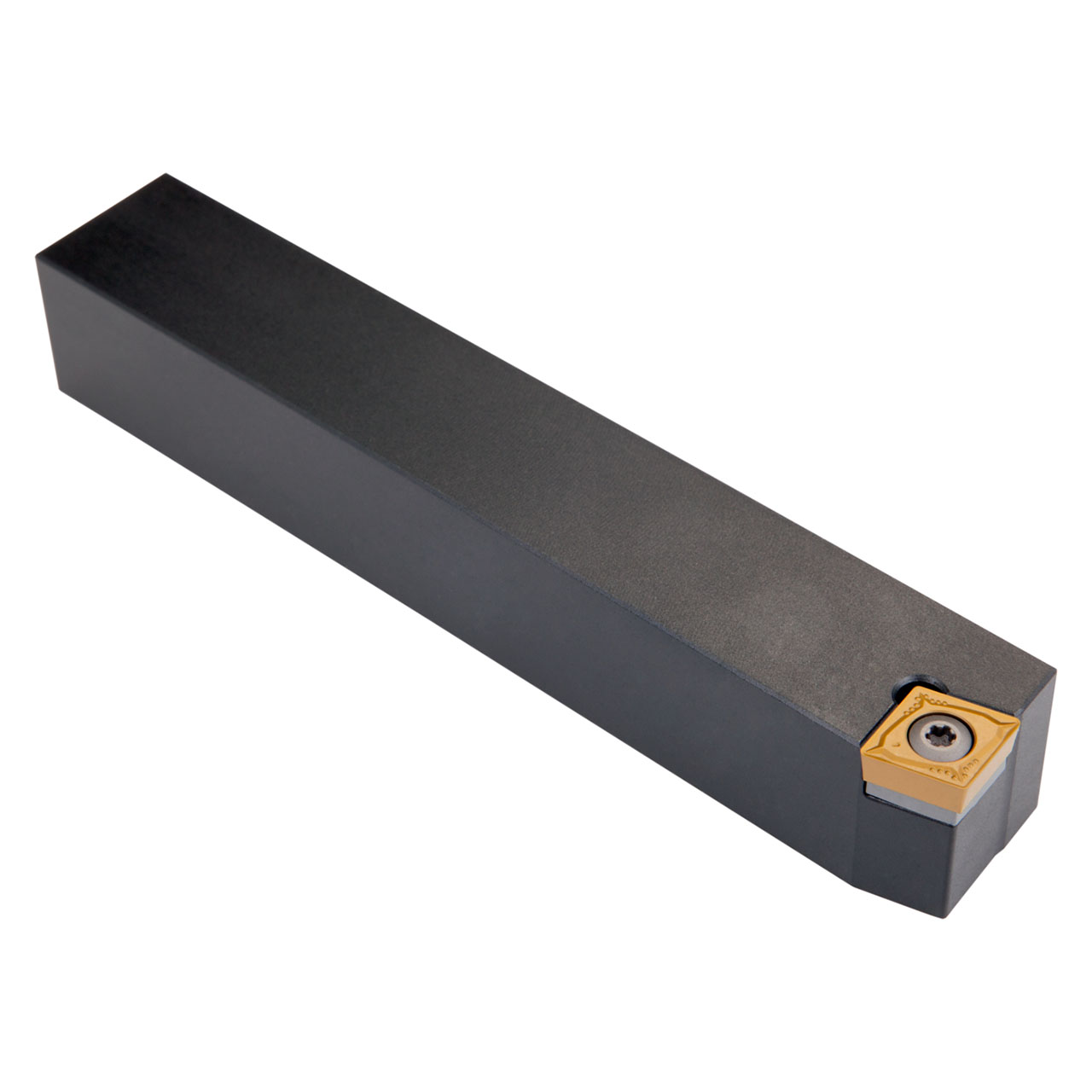

Screw clamp turning tool for holding a 80 Degree rhombus positive insert with an inscribed circle diameter of 9.525 mm, 3.97 mm thick (ISO designation CC.. 09T3.. ), left hand 75 Degree side cutting with straight shank, 12 mm tool height x 12 mm width x 80 mm long for taper turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6756992 |
| Functional Height (mm) | 12 mm |
| Functional Width (mm) | |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 12 mm |
| Shank Width (mm) | 12 mm |
| Functional Length (mm) | 80 mm |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
15/32"
Shank Width (Decimal Inch):
0.4700"
Shank Width (mm):
12mm
Shank Height (Inch):
15/32"
Shank Height (Decimal Inch):
0.4700"
Shank Height (mm):
12mm
interval quantity:
1
