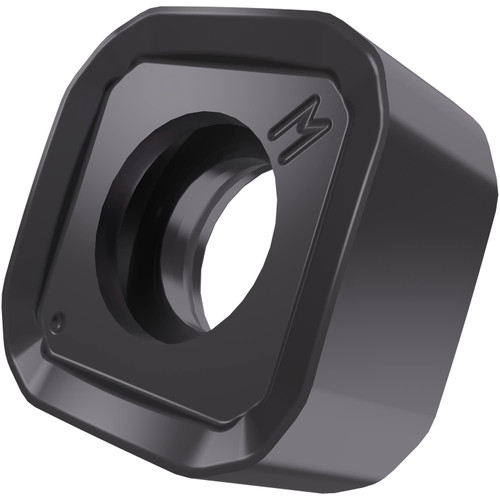

Single-sided milling insert SDKT 1205 with chip-breakers, square for a maximum depth of cut of 10.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-K and F geometry with sharp cutting edges, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10-P20 for machining of steel with copy face mills SOD05.
Product Specifications
| EDP Number | 7342908 |
| Maximum Depth of Cut (mm) | 10 mm |
| Max Depth of Cut (Inch) | 0.394" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Cutting Edge Length (mm) | 12.7 mm |
| Cutting Edge Length (Inch) | 0.5" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| Insert Thickness (mm) | 5.56 mm |
| Insert Thickness (Inch) | 0.219" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | PVD |
| Coating | 8215 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.2 mm |
| Min Depth of Cut (Inch) | 0.008" |
