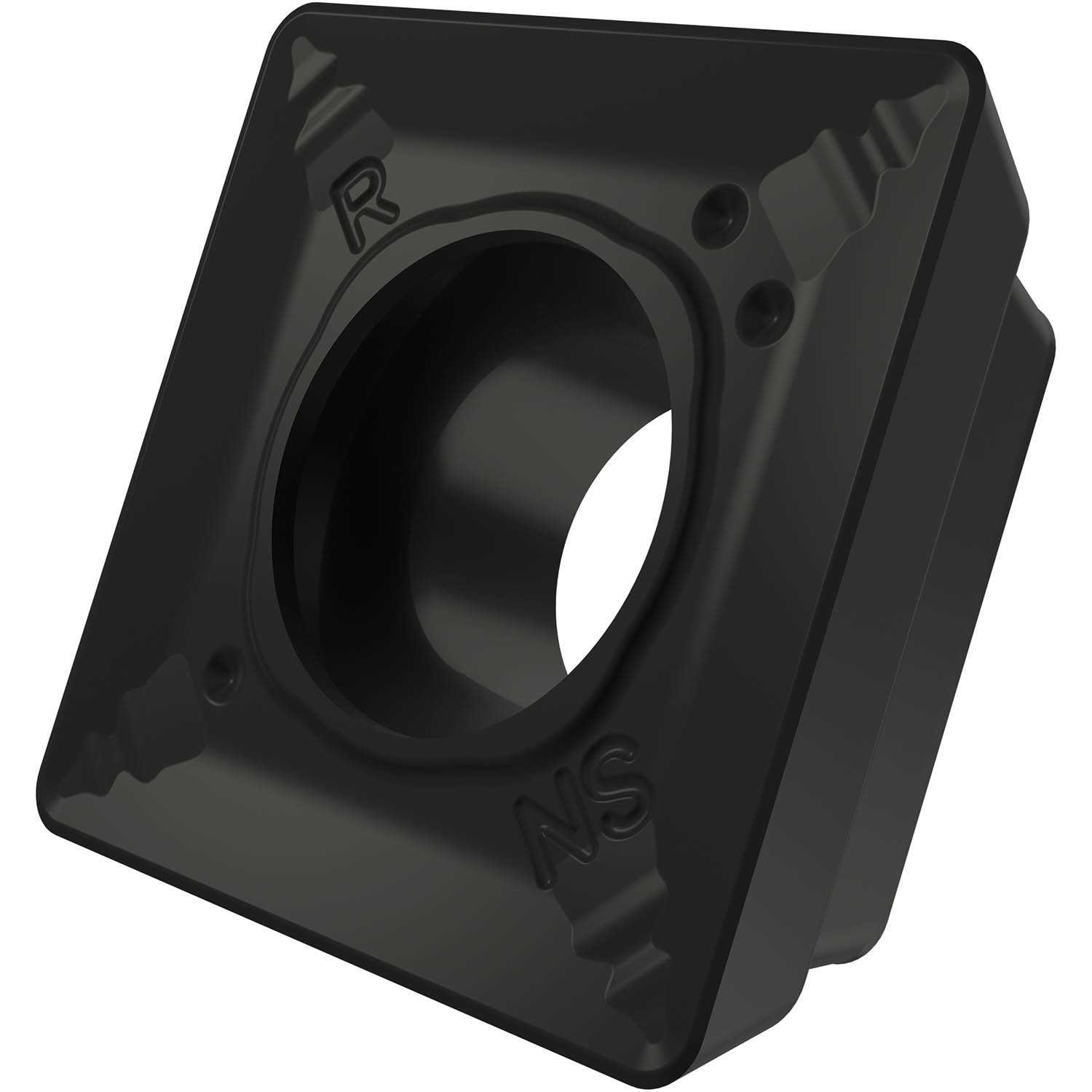

Single-sided milling insert SDMT 1205 with chip-breakers, square for a maximum depth of cut of 10.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and double facet, M9315 MT-CVD coated WC-Co carbide within ISO-grade range P05-P25 for machining of steel with shoulder mills SSD12.
Product Specifications
| EDP Number | 6754610 |
| Maximum Depth of Cut (mm) | 10 mm |
| Max Depth of Cut (Inch) | 0.394" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Fixing Hole Diameter (Inch) | 0.173" |
| Cutting Edge Length (mm) | 12.7 mm |
| Cutting Edge Length (Inch) | 0.5" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| Insert Thickness (mm) | 5 mm |
| Insert Thickness (Inch) | 0.197" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | MT-CVD |
| Coating | M9315 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
| Country of origin | Czech Republic |
