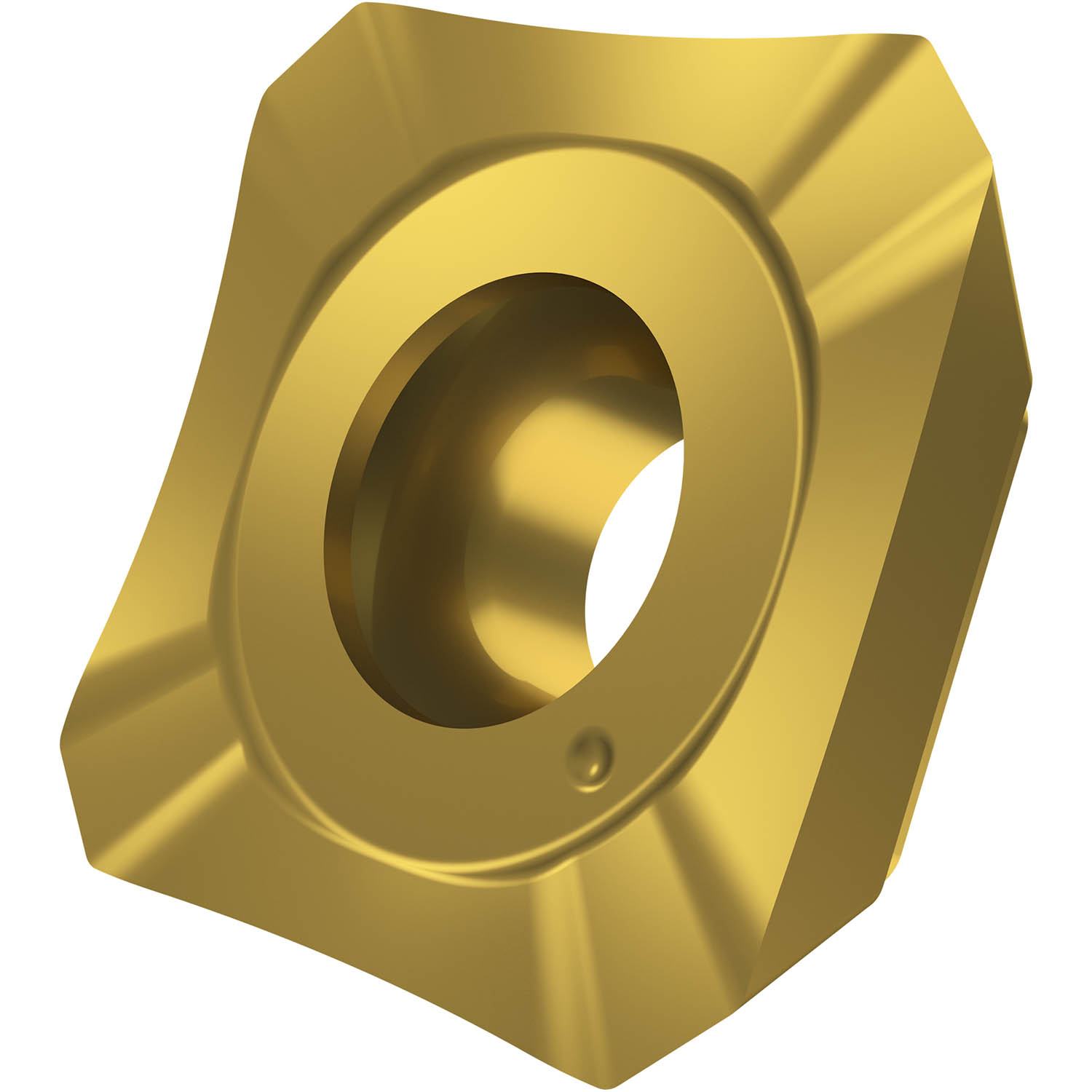

Single-sided milling insert SEET 09T3 with chip-breakers, square for a maximum depth of cut of 4.5 mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills SSE09.
Product Specifications
| EDP Number | 7451003 |
| Maximum Depth of Cut (mm) | 4.5 mm |
| Max Depth of Cut (Inch) | 0.177" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.5 mm |
| Fixing Hole Diameter (Inch) | 0.138" |
| Cutting Edge Length (mm) | 9.525 mm |
| Cutting Edge Length (Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| M-Dimension (mm) | 1.21 mm |
| M-Dimension (Inch) | 0.048" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
