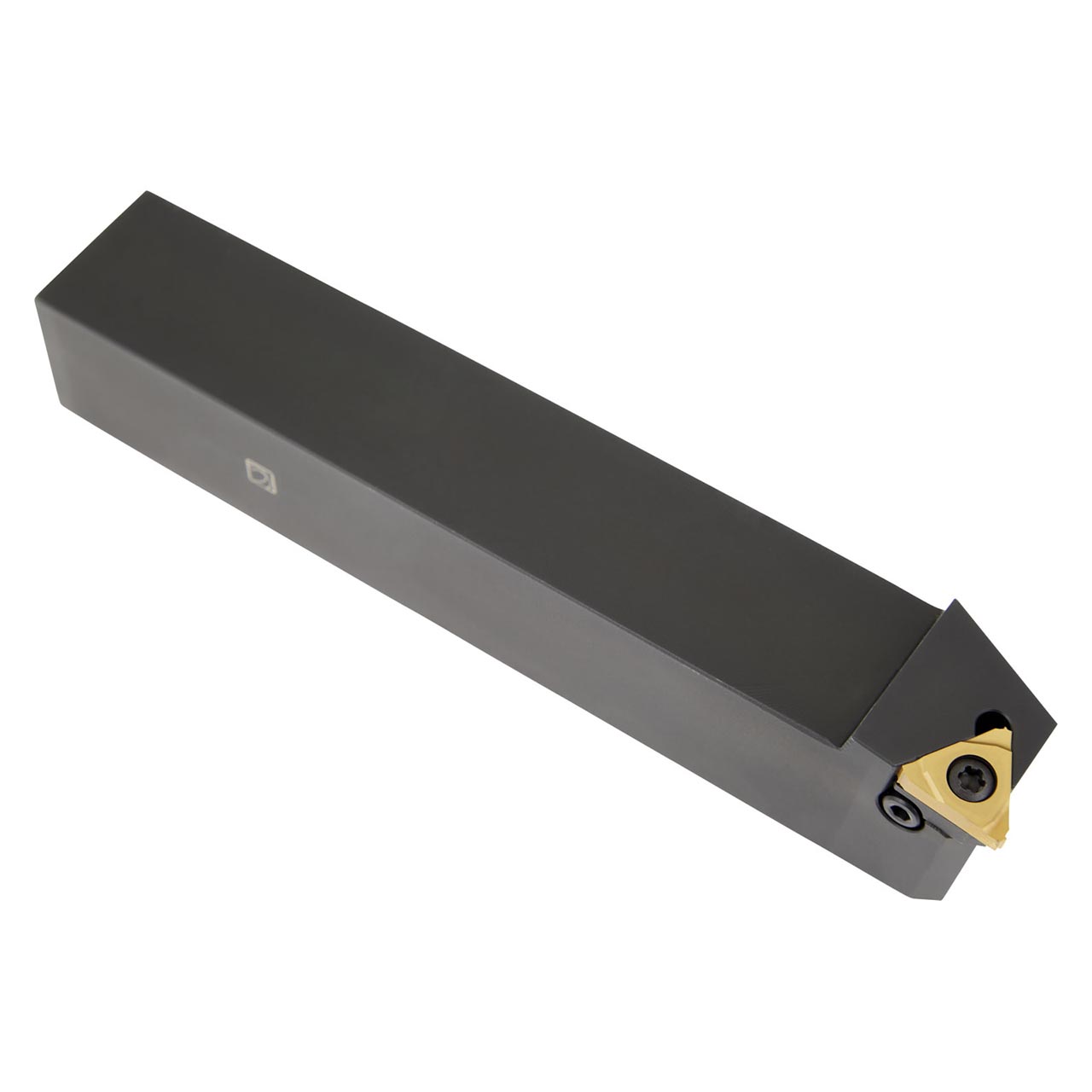

Screw clamp thread turning tool with 1.5 Degree helix angle for holding a triangle shaped insert with an inscribed circle diameter of 9.525 mm (designation TN 16EL.. ), left hand standard design with straight shank, 25 mm tool height, 25 mm width and 150 mm overall length for external threading, circlip grooving, and o-ring grooving.
Product Specifications
| EDP Number | 6756972 |
| Functional Height (mm) | 25 mm |
| Functional Width (mm) | |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 25 mm |
| Shank Width (mm) | 25 mm |
| Functional Length (mm) | 150 mm |
| Head Length (mm) | 24 mm |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
