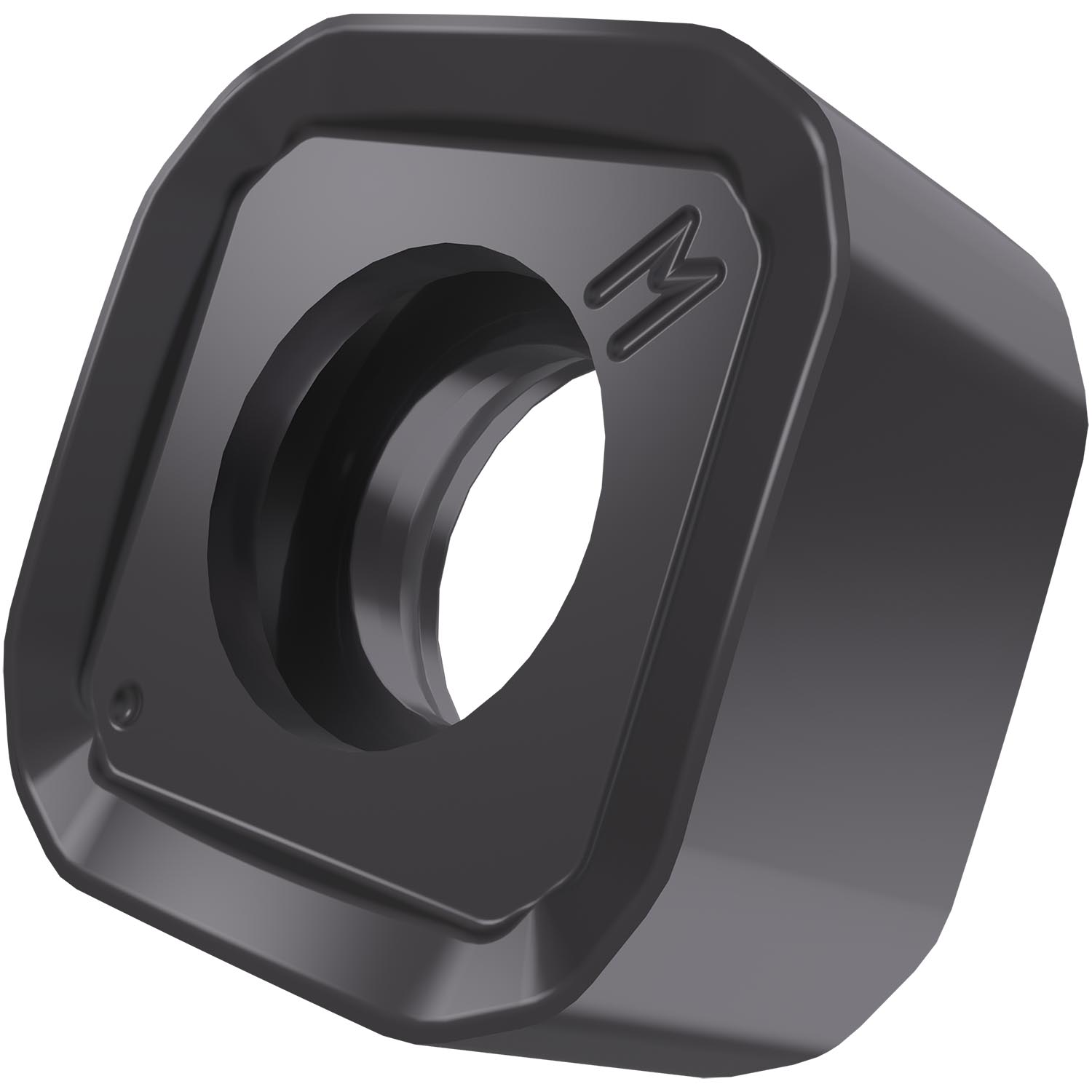

Double-sided milling insert SNGX 1104, square for a maximum depth of cut of 1.7 mm, with 1.6 mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01-P10 for machining of steel with high feed cutters SSN11.
Product Specifications
| EDP Number | 7799777 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.56 mm |
| Fixing Hole Diameter (Inch) | 0.18" |
| Inscribed Circle Diameter (mm) | 10.6 mm |
| Inscribed Circle Diameter (Inch) | 0.417" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Corner Radius (mm) | 1.6 mm |
| Corner Radius (Inch) | 0.063" |
| Coating Process | PVD |
| Coating | M8310 |
| Surface Color | Purple - Black |
