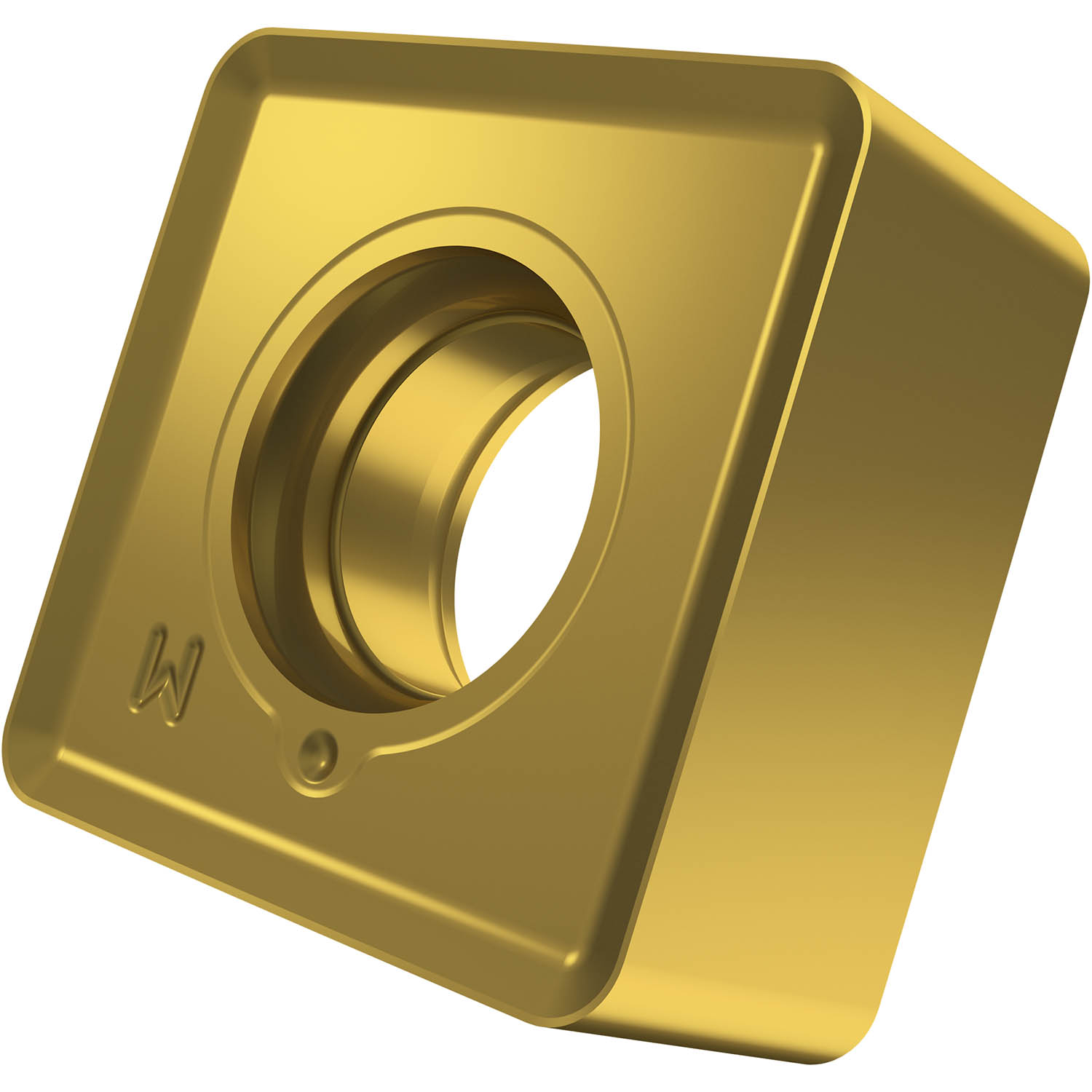

Double-sided milling insert SNGX 1305, square for a maximum depth of cut of 12.0 mm, with 1.2 mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with shoulder mills with extended flute J(T)-SLSN.
Product Specifications
| EDP Number | 6801321 |
| Maximum Depth of Cut (mm) | 12 mm |
| Max Depth of Cut (Inch) | 0.472" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.9 mm |
| Fixing Hole Diameter (Inch) | 0.232" |
| Cutting Edge Length (mm) | 13.2 mm |
| Cutting Edge Length (Inch) | 0.52" |
| Inscribed Circle Diameter (mm) | 13.2 mm |
| Inscribed Circle Diameter (Inch) | 0.52" |
| Insert Thickness (mm) | 5.96 mm |
| Insert Thickness (Inch) | 0.235" |
| Corner Radius (mm) | 1.2 mm |
| Corner Radius (Inch) | 0.047" |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1.2 mm |
| Min Depth of Cut (Inch) | 0.047" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
10
