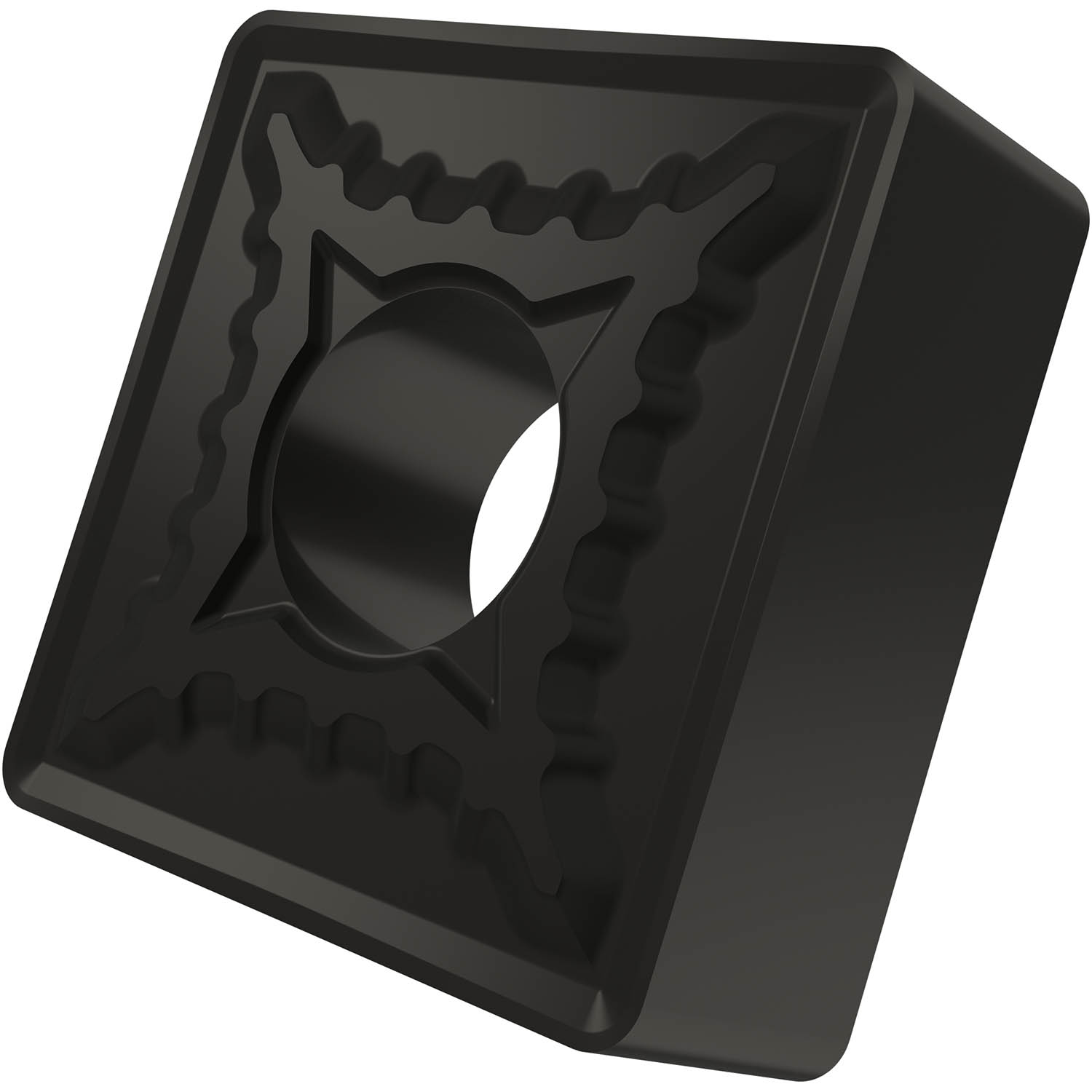

Double-sided negative turning insert, square with inscribed circle diameter of 19.05 mm, 6.35 mm thick, 1.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SM with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M20-M40 and S15-S25, for fine to heavy machining of stainless-steels and super-alloys.
Product Specifications
| EDP Number | 6915850 |
| Max Depth of Cut (mm) | 5.5 mm |
| Max Depth of cut (Inch) | 0.217" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 7.94 mm |
| Fixing Hole Diameter (Inch) | 0.313" |
| Cutting Edge Length (mm) | 19.05 mm |
| Cutting Edge Length (Inch) | 0.75" |
| Inscribed Circle Diameter (mm) | 19.05 mm |
| Inscribed Circle Diameter (Inch) | 0.75" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Corner Radius (mm) | 1.2 mm |
| Corner Radius (Inch) | 0.047" |
| Coating Process | MT-CVD |
| Coating | T7335 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 1.2 mm |
| Min Depth of Cut (Inch) | 0.047" |
| Chipbreaker Manufacturer's Designation | SM |
