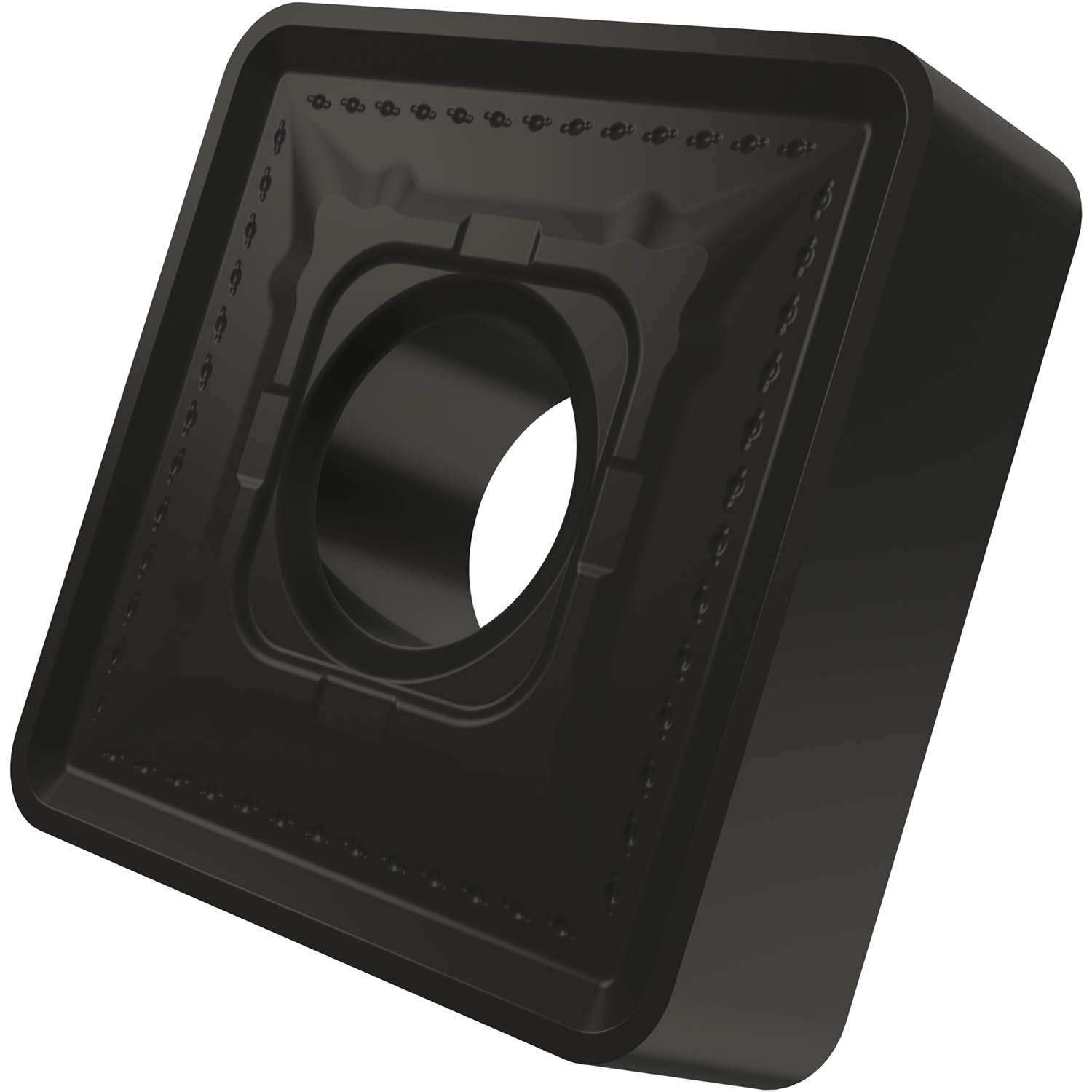

Single-sided negative turning insert, square with inscribed circle diameter of 19.05 mm, 6.35 mm thick, 1.6 mm nose radius and indexing accuracy according to ISO-tolerance class-M, chip-breaker HR2, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for heavy to extra heavy machining of steels.
Product Specifications
| EDP Number | 7036354 |
| Max Depth of Cut (mm) | 13 mm |
| Max Depth of cut (Inch) | 0.512" |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 7.94 mm |
| Fixing Hole Diameter (Inch) | 0.313" |
| Cutting Edge Length (mm) | 19.05 mm |
| Cutting Edge Length (Inch) | 0.75" |
| Inscribed Circle Diameter (mm) | 19.05 mm |
| Inscribed Circle Diameter (Inch) | 0.75" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Corner Radius (mm) | 1.6 mm |
| Corner Radius (Inch) | 0.063" |
| Coating Process | MT-CVD |
| Coating | T9335 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 3 mm |
| Min Depth of Cut (Inch) | 0.118" |
| Chipbreaker Manufacturer's Designation | HR2 |
