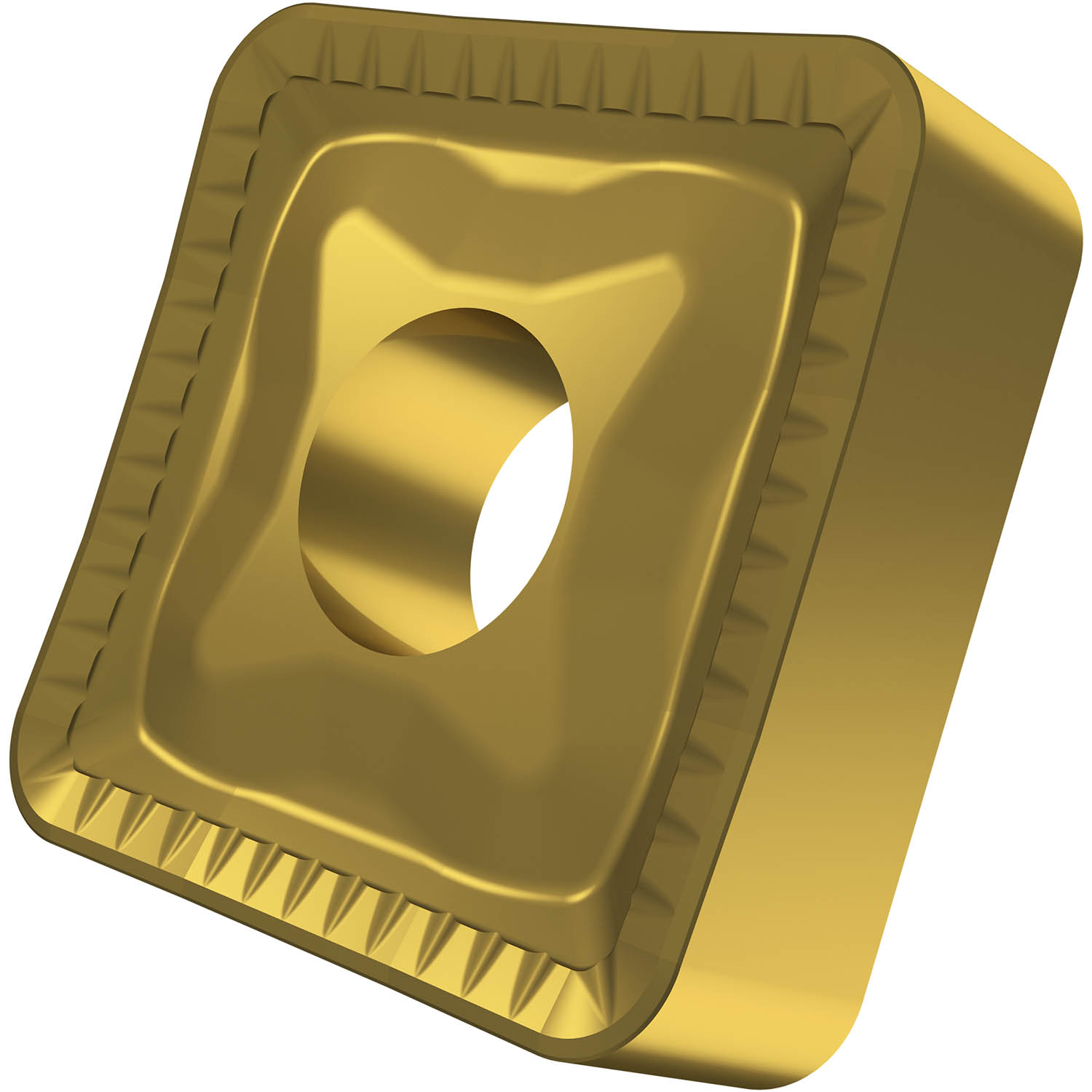

Single-sided negative turning insert, square with inscribed circle diameter of 25.4 mm, 7.94 mm thick, 2.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker HR with rounded cutting edges, in grade 6640, a MT-CVD coated WC-Co carbide within ISO range P20-P40, for heavy to extra heavy machining of steels.
Product Specifications
| EDP Number | 6751563 |
| Max Depth of Cut (mm) | 14 mm |
| Max Depth of cut (Inch) | 0.551" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 9.12 mm |
| Fixing Hole Diameter (Inch) | 0.359" |
| Cutting Edge Length (mm) | 25.4 mm |
| Cutting Edge Length (Inch) | 1" |
| Inscribed Circle Diameter (mm) | 25.4 mm |
| Inscribed Circle Diameter (Inch) | 1" |
| Insert Thickness (mm) | 7.94 mm |
| Insert Thickness (Inch) | 0.313" |
| Corner Radius (mm) | 2.4 mm |
| Corner Radius (Inch) | 0.094" |
| Coating Process | MT-CVD |
| Coating | 6640 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 5 mm |
| Min Depth of Cut (Inch) | 0.157" |
| Chipbreaker Manufacturer's Designation | HR |
