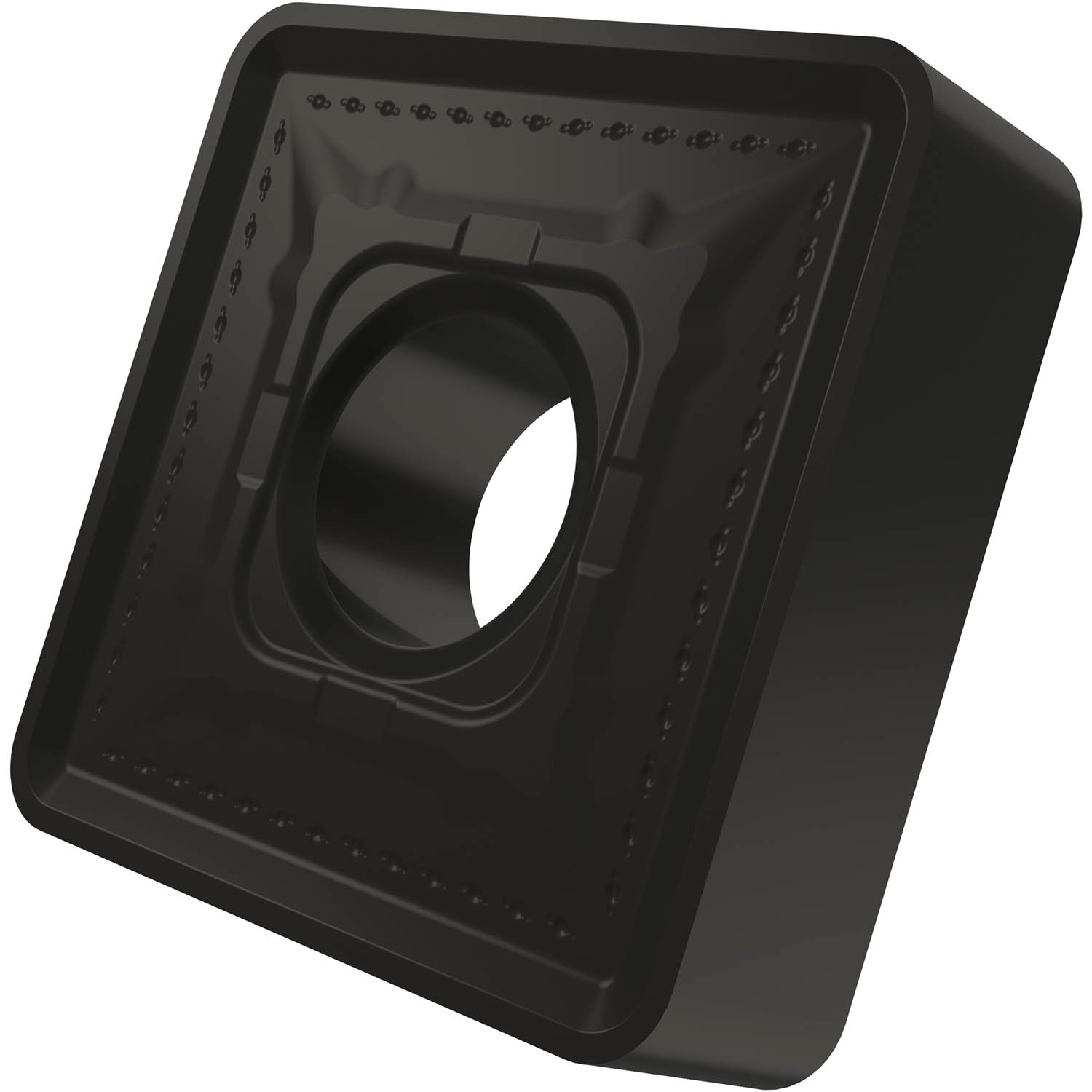

Pramet 7015750 | 0.359" Hole Diameter x 1.000" Inscribed Circle x 0.313" Thickness x 1.000" Length x 0.094" Radius MT-CVD Coated Turning Insert - Black

SKU: 23149091 Weight: 0.13 LBS Minimum Purchase: 10 unit
UPC:
$67.90 $48.21
(You save $19.69)
Total Price: $48.21
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Single-sided negative turning insert, square with inscribed circle diameter of 25.4 mm, 7.94 mm thick, 2.4 mm nose radius and indexing accuracy according to ISO-tolerance class-M, chip-breaker HR2, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for heavy to extra heavy machining of steels.

Product Specifications
EDP Number7015750
Max Depth of Cut (mm)16 mm
Max Depth of cut (Inch)0.63"
Coating Property1
Maximum Axial Groove Outside Diameter (mm)
Fixing Hole Diameter (mm)9.12 mm
Fixing Hole Diameter (Inch)0.359"
Cutting Edge Length (mm)25.4 mm
Cutting Edge Length (Inch)1"
Inscribed Circle Diameter (mm)25.4 mm
Inscribed Circle Diameter (Inch)1"
Insert Thickness (mm)7.94 mm
Insert Thickness (Inch)0.313"
Corner Radius (mm)2.4 mm
Corner Radius (Inch)0.094"
Coating ProcessMT-CVD
CoatingT9335
Surface ColorBlack
Min Depth of Cut (mm)3 mm
Min Depth of Cut (Inch)0.118"
Chipbreaker Manufacturer's DesignationHR2
