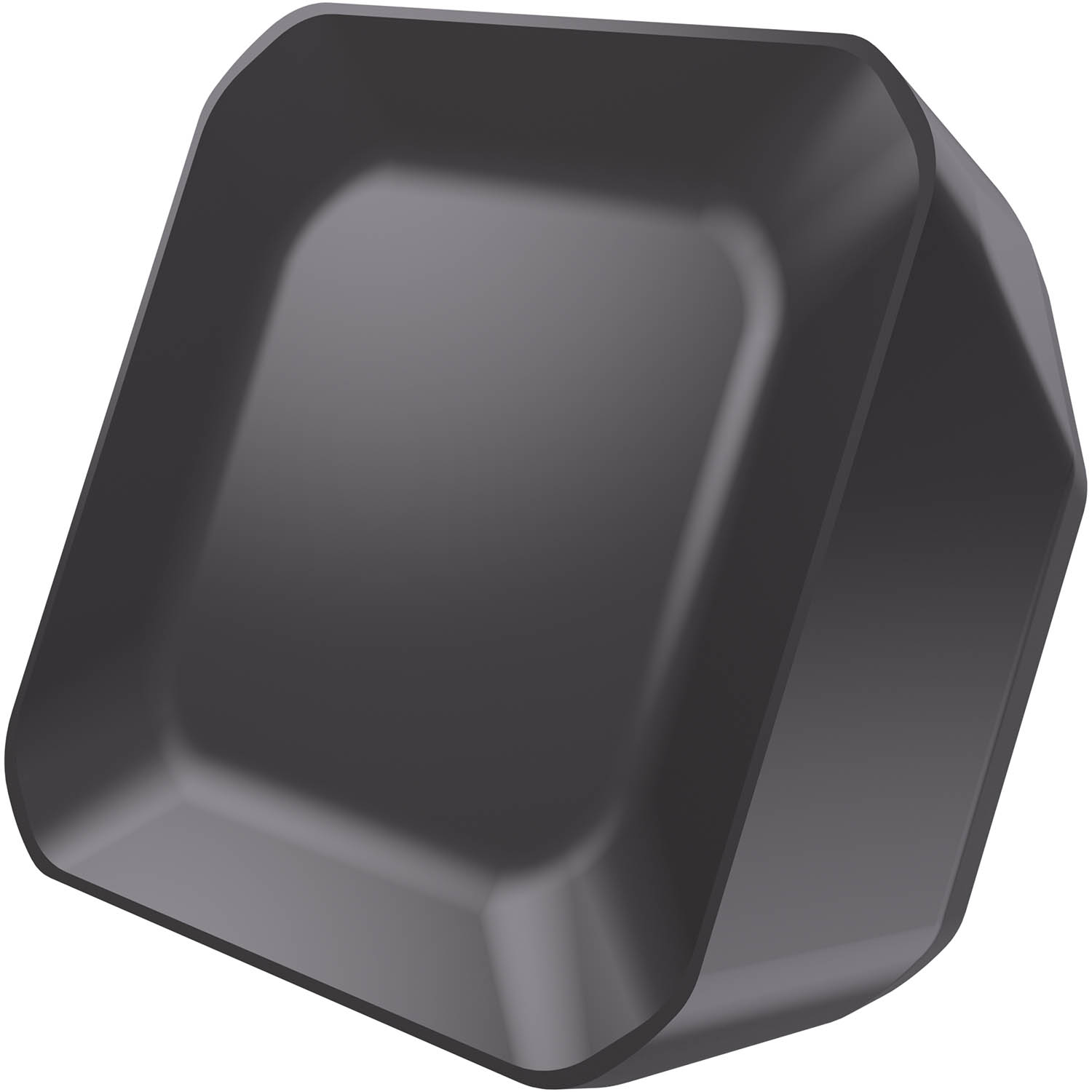

Single-sided milling insert SNMT 1205 with chip-breakers, square for a maximum depth of cut of 6.5 mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide for machining with face mills SSN12Z.
Product Specifications
| EDP Number | 6753417 |
| Maximum Depth of Cut (mm) | 6.5 mm |
| Max Depth of Cut (Inch) | 0.256" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.2 mm |
| Fixing Hole Diameter (Inch) | 0.205" |
| Cutting Edge Length (mm) | 12.7 mm |
| Cutting Edge Length (Inch) | 0.5" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| Insert Thickness (mm) | 5.56 mm |
| Insert Thickness (Inch) | 0.219" |
| Coating Process | PVD |
| Coating | 8215 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
