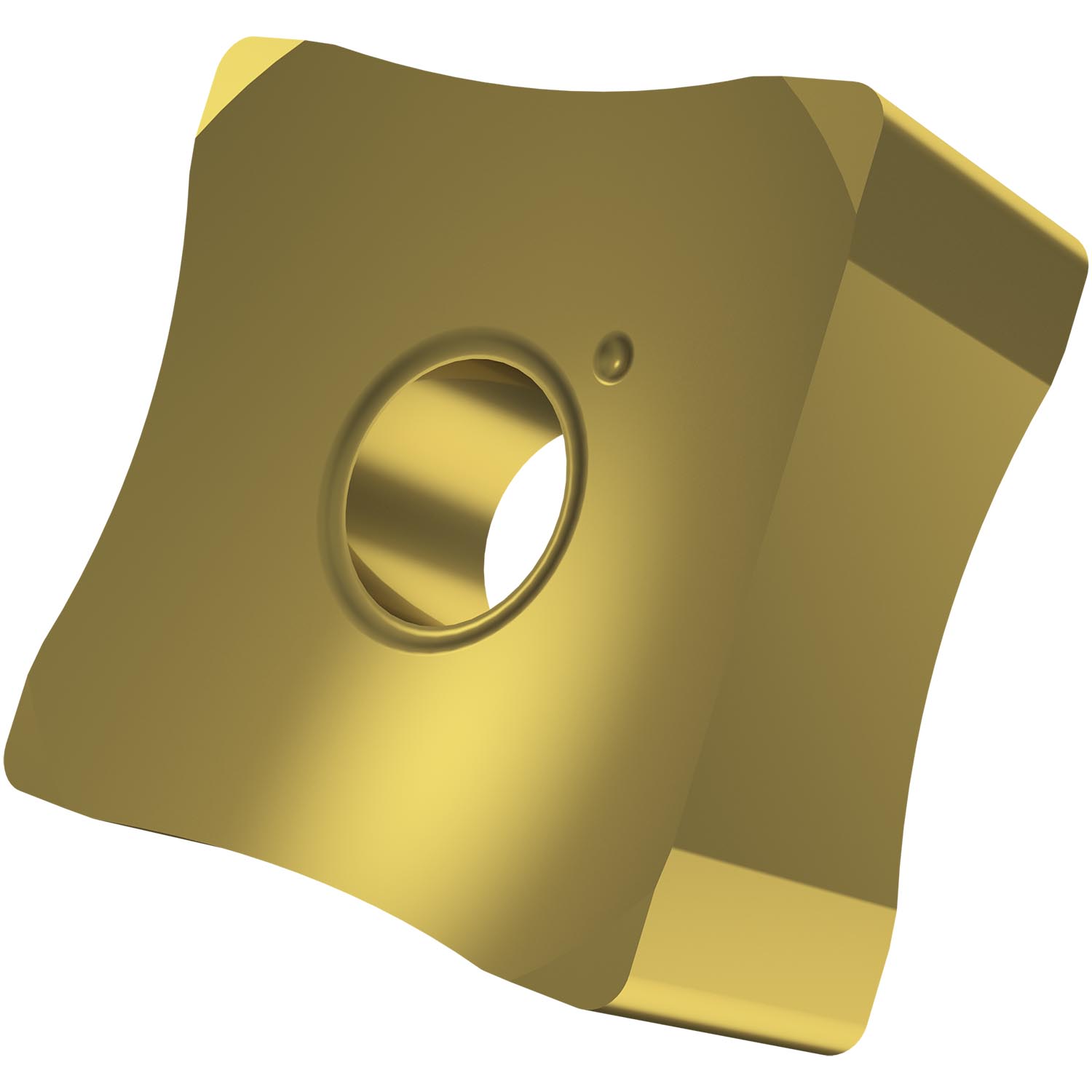

Double-sided scarfing insert, square with a main cutting edge length of 15.875 mm, 7.75 mm thick and a working radius of 50 mm for tube diameters from 73 to 93 mm, 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for deburring the outside of steel and stainless-steel tubes and pipes.
Product Specifications
| EDP Number | 7817112 |
| Profile Radius (mm) | 50 mm |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (Inch) | 5.16" |
| Cutting Edge Length (mm) | 15.875 mm |
| Inscribed Circle Diameter (mm) | 15.875 mm |
| Insert Thickness (mm) | 7.75 mm |
| Coating Process | MT-CVD |
| Coating | 6640 |
| Surface Color | Gold |
| Chipbreaker Manufacturer's Designation | No chipbreaker |
| Country of origin | Czech Republic |
