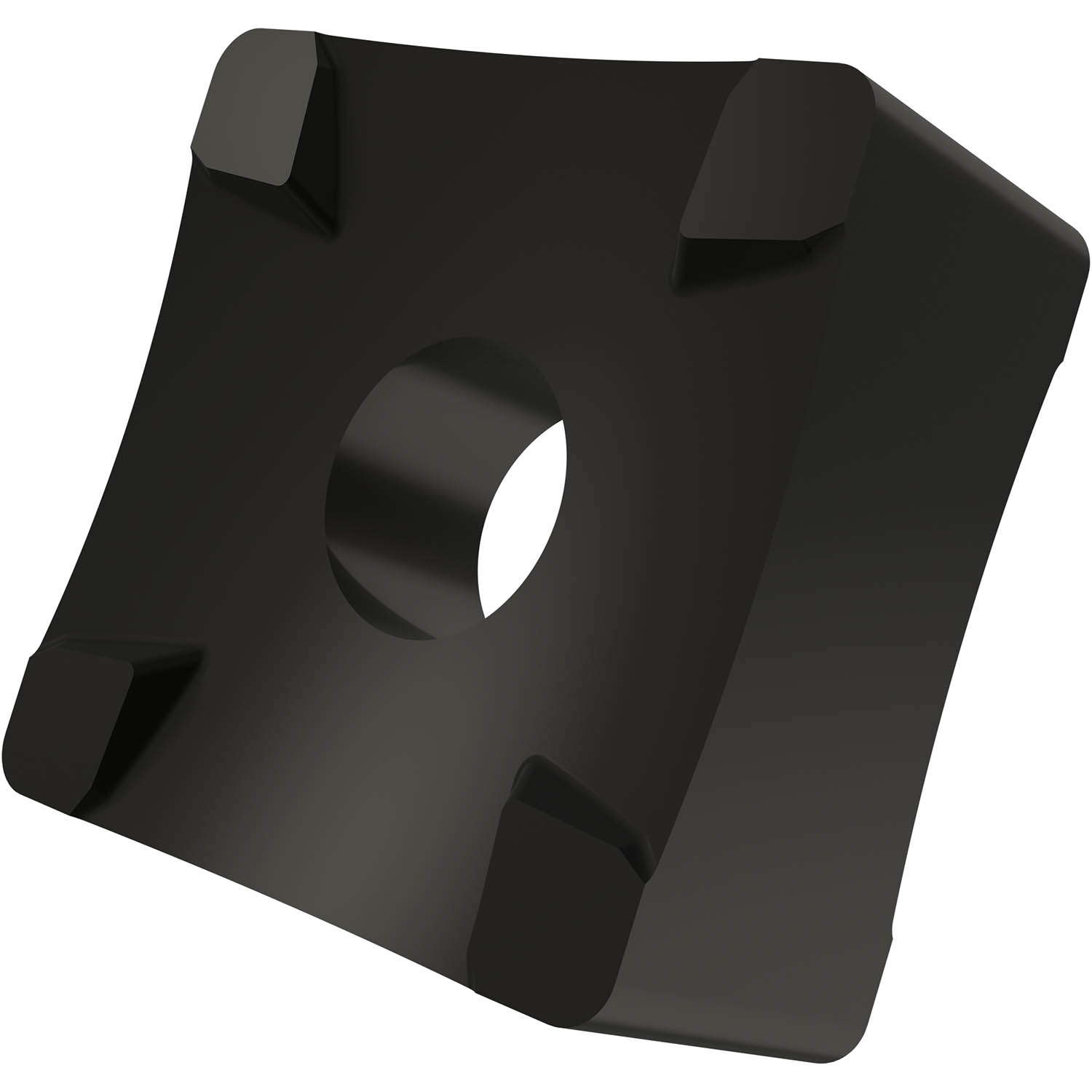

Double-sided scarfing insert, square with a main cutting edge length of 25.4 mm, 12.2 mm thick and a working radius of 50 mm for tube diameters from 58 to 73 mm, T9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P45/M15-M40 and S15-S25 for deburring the outside of steel, stainless-steel and super-alloy tubes and pipes.
Product Specifications
| EDP Number | 6801263 |
| Profile Radius (mm) | 50 mm |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 9.12 mm |
| Fixing Hole Diameter (Inch) | 9.12" |
| Cutting Edge Length (mm) | 25.4 mm |
| Cutting Edge Length (Inch) | 1" |
| Inscribed Circle Diameter (mm) | 25.4 mm |
| Inscribed Circle Diameter (Inch) | 1" |
| Insert Thickness (mm) | 12.2 mm |
| Insert Thickness (Inch) | 0.48" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating Process | MT-CVD |
| Coating | T9335 |
| Surface Color | Black |
| Chipbreaker Manufacturer's Designation | With chipbreaker -no designation |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

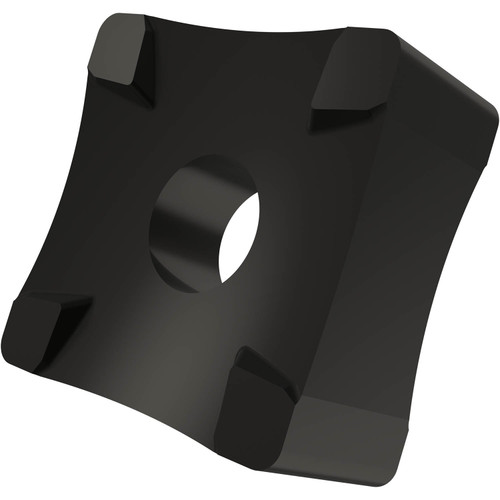

Related Products
