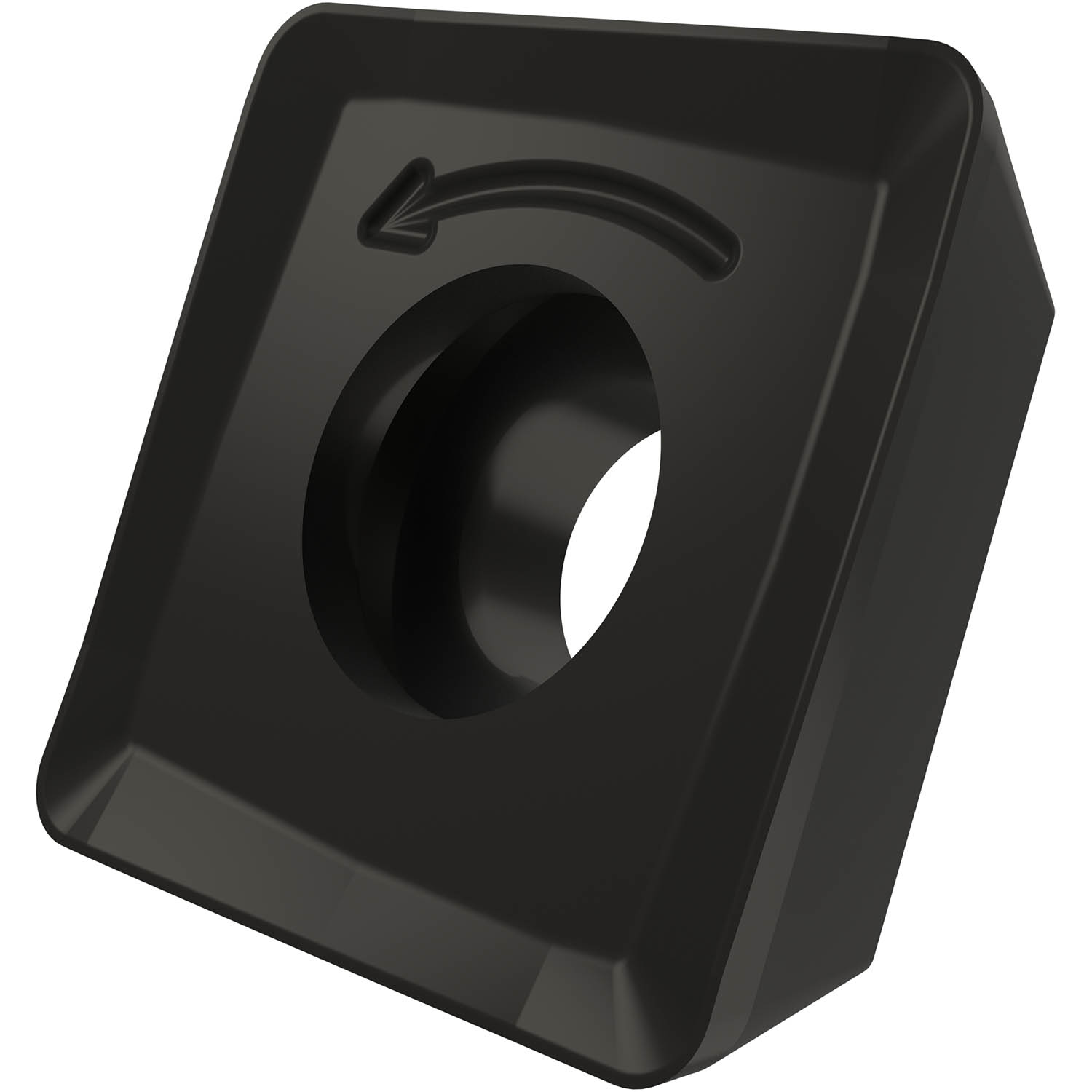

Pramet 6754617 | 0.138" Hole Diameter x 0.376" Inscribed Circle x 0.156" Thickness x 0.376" Length x 0.031" Radius MT-CVD Coated Milling Insert - Black

SKU: 23151338 Weight: 0.01 LBS Minimum Purchase: 10 unit
UPC:
$18.70 $14.59
(You save $4.11)
Total Price: $14.59
Shipping: Calculated at Checkout

About This Item

Single-sided milling insert SOMT 09T3 with chip-breakers, square for a maximum depth of cut of 8.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry, M9315 MT-CVD coated WC-Co carbide within ISO-grade range P05-P25 for machining of steel with chamfer mills N-SSO09 or shoulder mills SSO09.

Product Specifications
EDP Number6754617
Maximum Depth of Cut (mm)8 mm
Max Depth of Cut (Inch)0.315"
Coating Property1
Fixing Hole Diameter (mm)3.5 mm
Fixing Hole Diameter (Inch)0.138"
Cutting Edge Length (mm)9.55 mm
Cutting Edge Length (Inch)0.376"
Inscribed Circle Diameter (mm)9.55 mm
Inscribed Circle Diameter (Inch)0.376"
Insert Thickness (mm)3.97 mm
Insert Thickness (Inch)0.156"
Corner Radius (mm)0.8 mm
Corner Radius (Inch)0.031"
Coating ProcessMT-CVD
CoatingM9315
Surface ColorBlack
Min Depth of Cut (mm)1 mm
Min Depth of Cut (Inch)0.039"
Country of originCzech Republic
