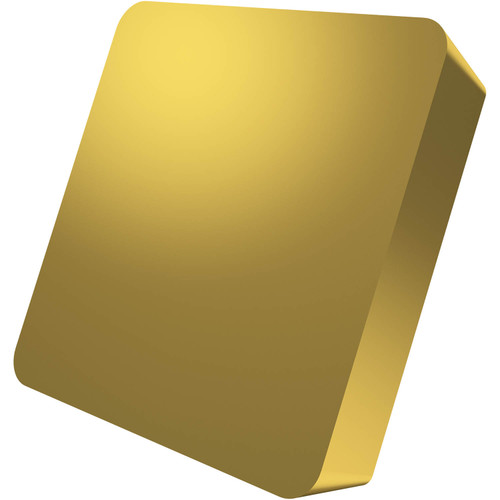

Double-sided positive turning insert, square with 11° clearance, inscribed circle diameter of 12.7 mm, 3.18 mm thick, 0.8 mm nose radius and indexing accuracy according to ISO-tolerance class-U, in grade 6640, a MT-CVD coated WC-Co carbide, for fine to medium machining.
Product Specifications
| EDP Number | 6751607 |
| Max Depth of Cut (mm) | 6 mm |
| Max Depth of cut (Inch) | 0.236" |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 12.7 mm |
| Cutting Edge Length (Inch) | 0.5" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| M-Dimension (mm) | 2.3 mm |
| M-Dimension (Inch) | 0.091" |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | MT-CVD |
| Coating | 6640 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.8 mm |
| Min Depth of Cut (Inch) | 0.031" |
| Chipbreaker Manufacturer's Designation | No chipbreaker |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
1/2"
Length (Decimal Inch):
0.5000"
Length (mm):
12.7mm
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.7mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.8mm
