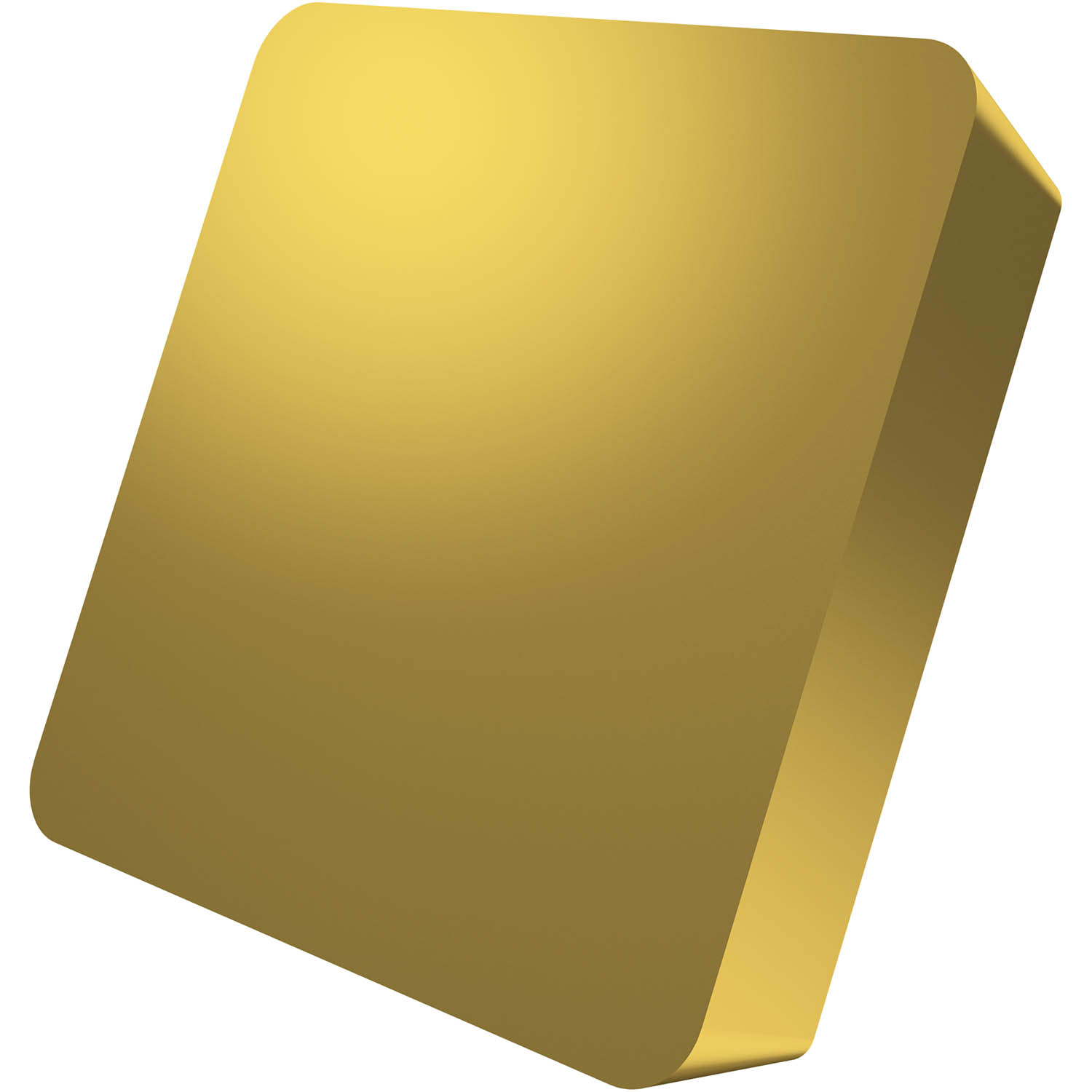

Single-sided milling insert SPUN 1904 with a plane rake surface, square for a maximum depth of cut of 16.0 mm, with 1.2 mm corner radius, an indexing accuracy according to ISO-tolerance class-U, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron.
Product Specifications
| EDP Number | 7451056 |
| Maximum Depth of Cut (mm) | 16 mm |
| Max Depth of Cut (Inch) | 0.63" |
| Coating Property | 1 |
| Cutting Edge Length (mm) | 19.05 mm |
| Cutting Edge Length (Inch) | 0.75" |
| Inscribed Circle Diameter (mm) | 19.05 mm |
| Inscribed Circle Diameter (Inch) | 0.75" |
| M-Dimension (mm) | 3.45 mm |
| M-Dimension (Inch) | 0.136" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Corner Radius (mm) | 1.2 mm |
| Corner Radius (Inch) | 0.047" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1.2 mm |
| Min Depth of Cut (Inch) | 0.047" |
