Pramet SPUB-63-F:T9335 | 19.05 mm Circle Diameter x T9335 Coating Turning Insert

$22.55 $13.93
(You save $8.62)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
3/4"
Length (Decimal Inch):
0.7500"
Length (mm):
19.05mm
Inscribed Circle (Inch):
3/4"
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1900"
Thickness (mm):
4.75mm
interval quantity:
10
SKU:
23152030
UPC:
Weight:
0.03 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

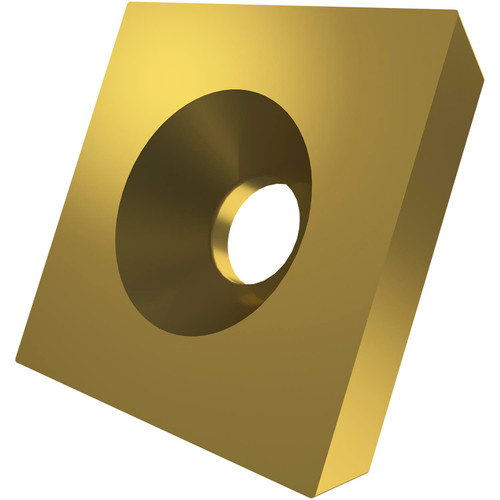

Single-sided scarfing insert, square with a main cutting edge length of 19.05 mm, 4.75 mm thick and a working radius of 30 mm for tube diameters from 45 to 57 mm, T9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P45 and M15-M40 for deburring the outside of steel and stainless-steel tubes and pipes.

Product Specifications
EDP Number7817056
Profile Radius (mm)30 mm
Coating Property1
Maximum Axial Groove Outside Diameter (mm)
Fixing Hole Diameter (Inch)5.15"
Cutting Edge Length (mm)19.05 mm
Inscribed Circle Diameter (mm)19.05 mm
Insert Thickness (mm)4.75 mm
Coating ProcessMT-CVD
CoatingT9335
Surface ColorBlack
Chipbreaker Manufacturer's DesignationNo chipbreaker
