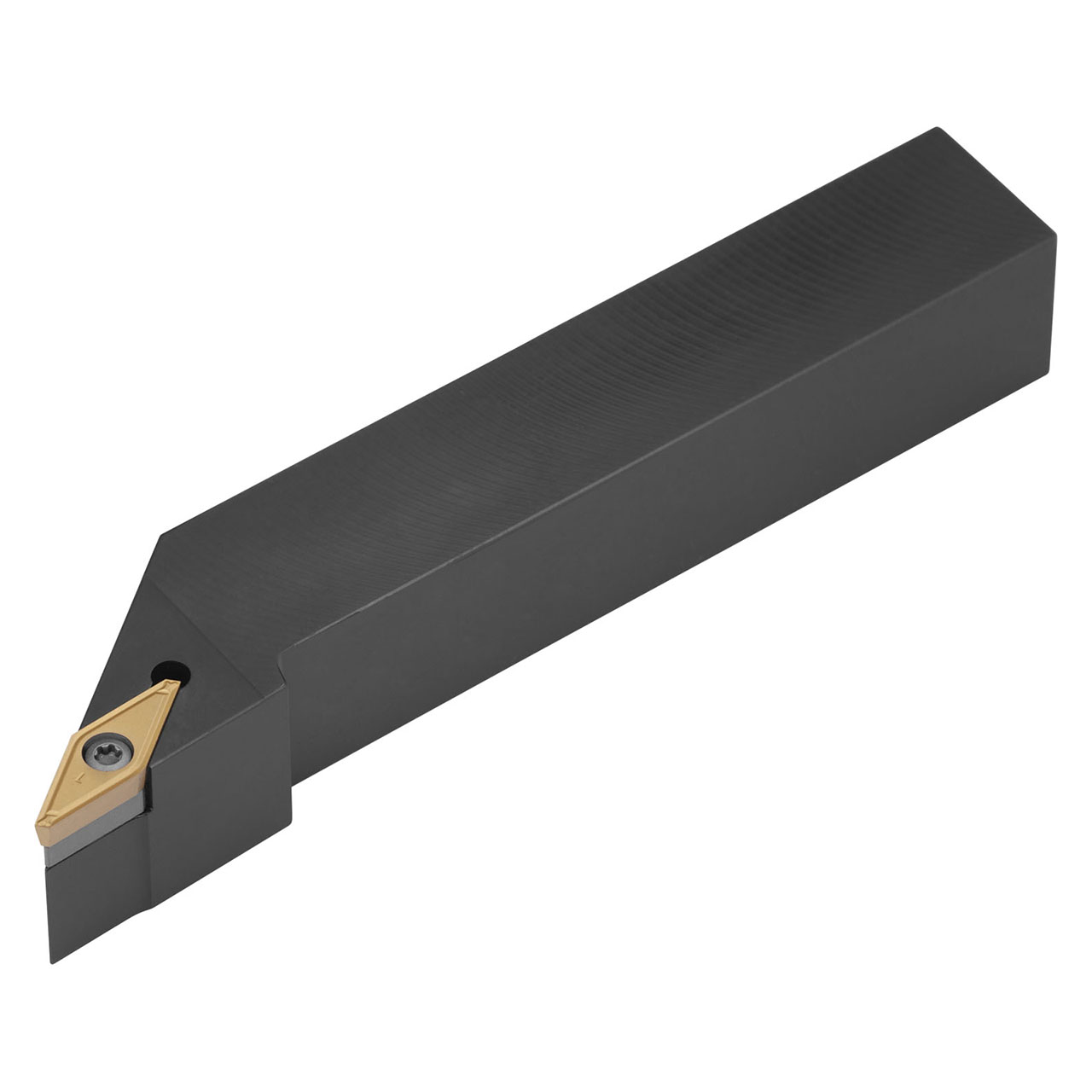

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 1/4'', 1/8'' thick (ANSI designation VB.. 22. ), right hand 93° side cutting with off-set shank, 3/4'' tool height x 3/4'' width x 4.1/2'' long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6788688 |
| Functional Width (Inch) | 1" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (Inch) | 0.75" |
| Shank Width (Inch) | |
| Functional Length (Inch) | 4.5" |
| Head Length (Inch) | 0.835" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
3/4"
Shank Width (Decimal Inch):
0.7500"
Shank Width (mm):
19.05mm
Shank Height (Inch):
3/4"
Shank Height (Decimal Inch):
0.7500"
Shank Height (mm):
19.05mm
