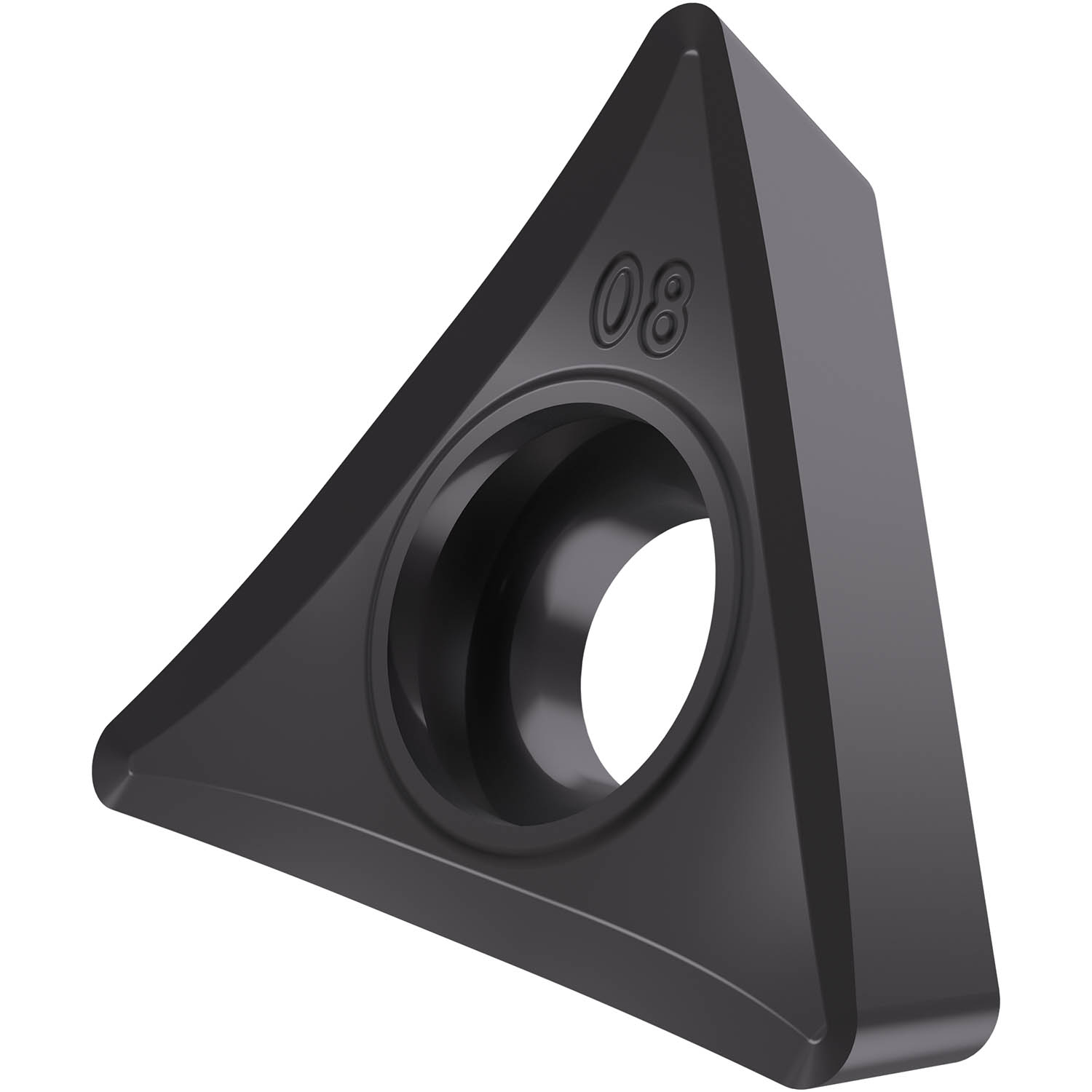

Pramet TCGT 21.50.5-SF3:T6310 | 0.25" Circle Diameter x 0.102" Thickness Turning Insert

$15.40 $9.94
(You save $5.46)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
7/16"
Length (Decimal Inch):
0.4330"
Length (mm):
11mm
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
7/64"
Thickness (Decimal Inch):
0.1020"
Thickness (mm):
2.58mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.2mm
interval quantity:
10
SKU:
23149171
UPC:
Weight:
0.06 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 6.35 mm, 2.38 mm thick, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01-M15 and S01-S15, for fine to medium machining of stainless-steels and super-alloys.

Product Specifications
EDP Number7168579
Max Depth of Cut (mm)1.6 mm
Max Depth of cut (Inch)0.063"
Coating Property1
Maximum Axial Groove Outside Diameter (mm)
Fixing Hole Diameter (mm)2.8 mm
Fixing Hole Diameter (Inch)0.11"
Cutting Edge Length (mm)11 mm
Cutting Edge Length (Inch)0.433"
Inscribed Circle Diameter (mm)6.35 mm
Inscribed Circle Diameter (Inch)0.25"
Insert Thickness (mm)2.58 mm
Insert Thickness (Inch)0.102"
Corner Radius (mm)0.2 mm
Corner Radius (Inch)0.008"
Coating ProcessPVD
CoatingT6310
Surface ColorPurple - Black
Min Depth of Cut (mm)0.2 mm
Min Depth of Cut (Inch)0.008"
Chipbreaker Manufacturer's DesignationSF3
