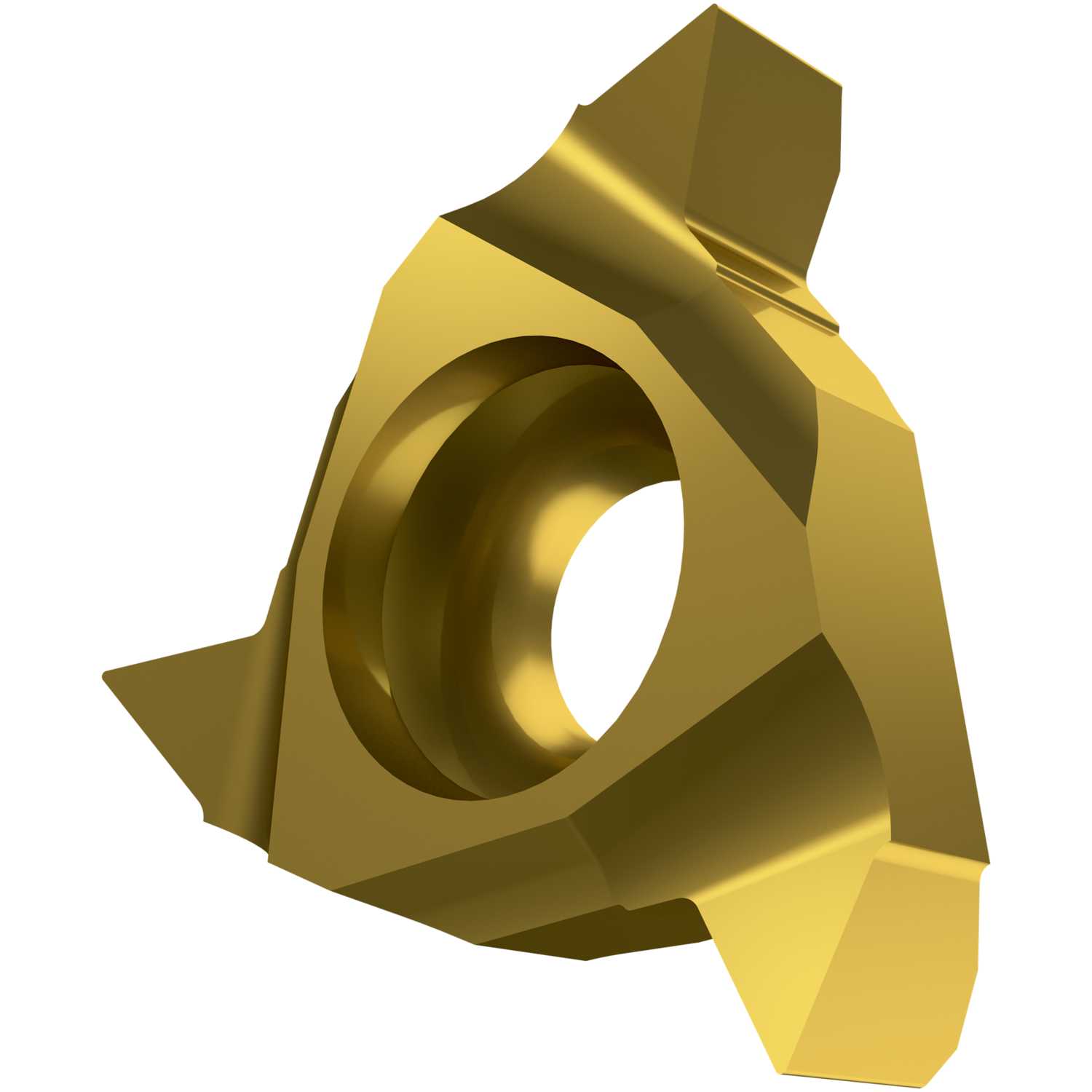

Single-sided threading insert, triangular with an inscribed circle diameter of 9.525 mm, for left hand cutting partial profile of British Standard internal threads with 14 to 8TPI, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron.
Product Specifications
| EDP Number | 6755541 |
| Coating Property | 1 |
| Profile Distance Ex (mm) | 1.5 mm |
| Profile Distance Ey (mm) | 1.1 mm |
| Cutting Edge Length (mm) | 16.5 mm |
| Cutting Edge Length (Inch) | 0.65" |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| Insert Thickness (mm) | 3.47 mm |
| Insert Thickness (Inch) | 0.137" |
| Min Thread Pitch (mm) | 1.75 mm |
| Max Thread pitch (mm) | 3 mm |
| Coating Process | PVD |
| Coating | T8030 |
| Surface Color | Gold |
| Profile Distance Ex (Inch) | 0.059" |
| Profile Distance Ey (Inch) | 0.043" |
| Chipbreaker Manufacturer's Designation | No chipbreaker |
| Country of origin | Czech Republic |
