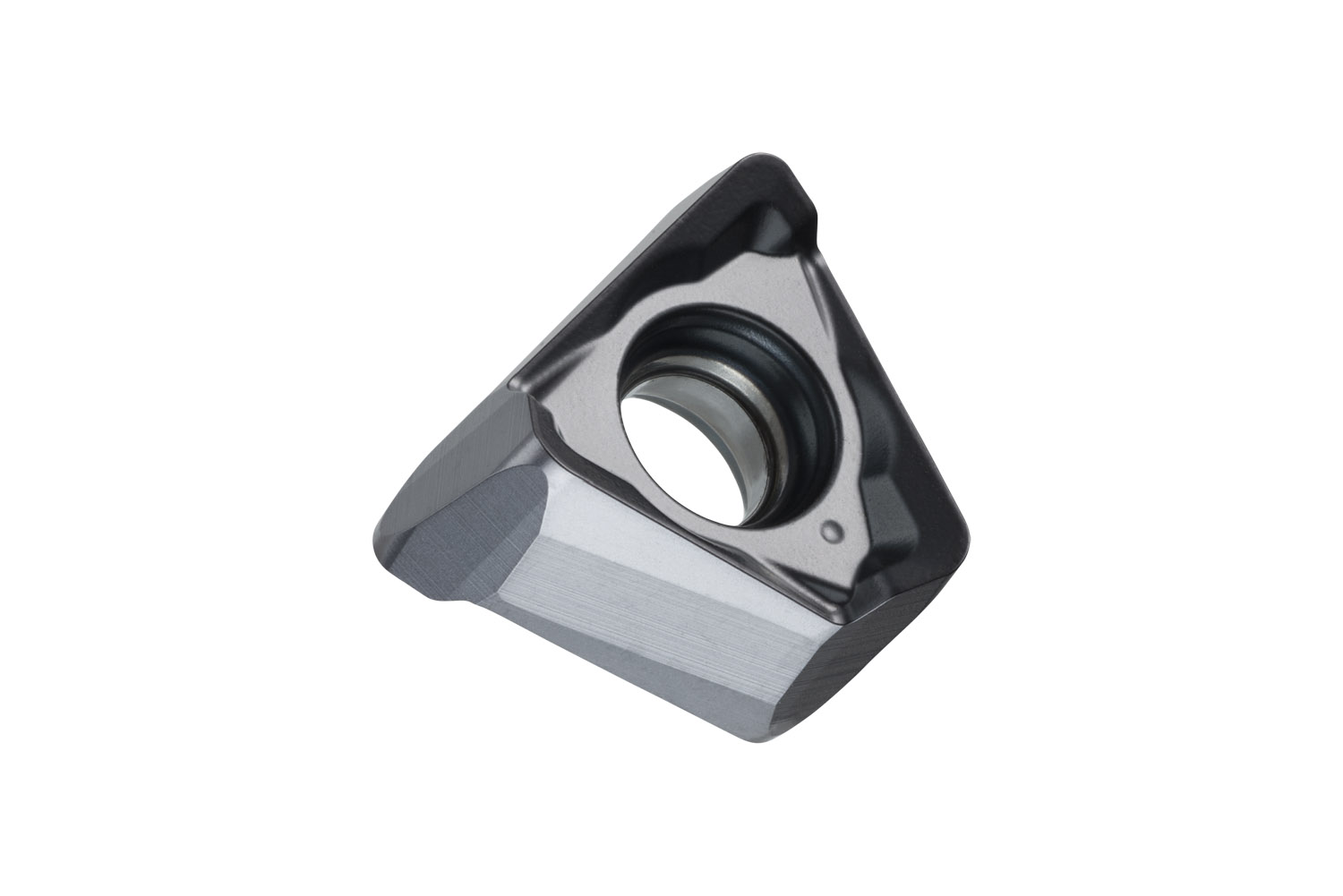

Double-sided milling insert TNGX 1004, triangular for a maximum depth of cut of 5.0 mm, with 1.6 mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01-P10 for machining of steel with shoulder face mills STN10.
Product Specifications
| EDP Number | 7799480 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.8 mm |
| Fixing Hole Diameter (Inch) | 0.11" |
| Cutting Edge Length (mm) | 10.39 mm |
| Cutting Edge Length (Inch) | 0.409" |
| Inscribed Circle Diameter (mm) | 6 mm |
| Inscribed Circle Diameter (Inch) | 0.236" |
| Insert Thickness (mm) | 4.54 mm |
| Insert Thickness (Inch) | 0.179" |
| Corner Radius (mm) | 1.6 mm |
| Corner Radius (Inch) | 0.063" |
| Coating Process | PVD |
| Coating | M8310 |
| Surface Color | Purple - Black |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
10
