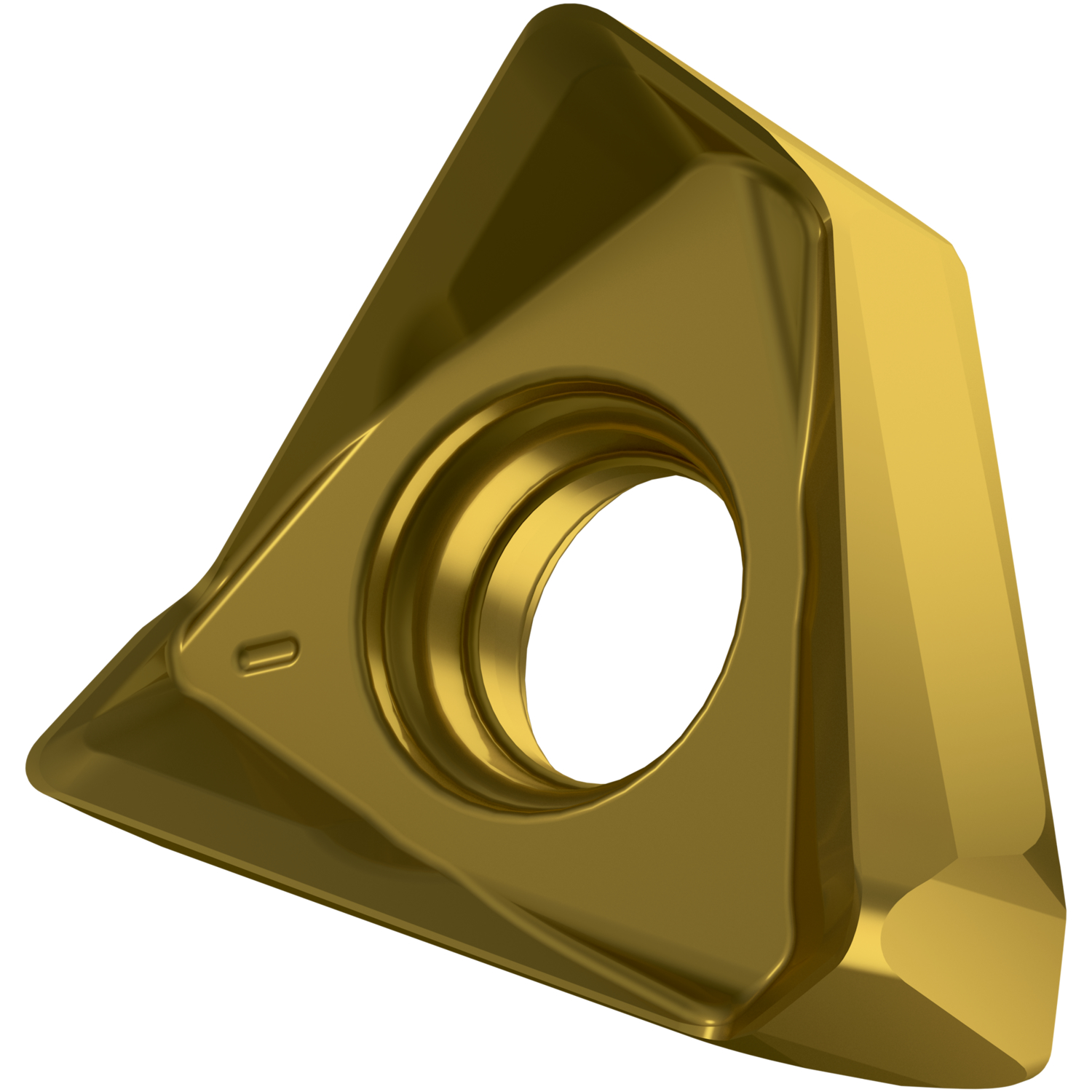

Double-sided milling insert TNGX 1606, triangular for a maximum depth of cut of 10.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-G and F geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide for machining of steel with shoulder face mills STN16.
Product Specifications
| EDP Number | 8020449 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Cutting Edge Length (mm) | 16.5 mm |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Insert Thickness (mm) | 6.58 mm |
| Corner Radius (mm) | 0.8 mm |
| Coating Process | PVD |
| Coating | M6330 |
| Surface Color | Gold |
